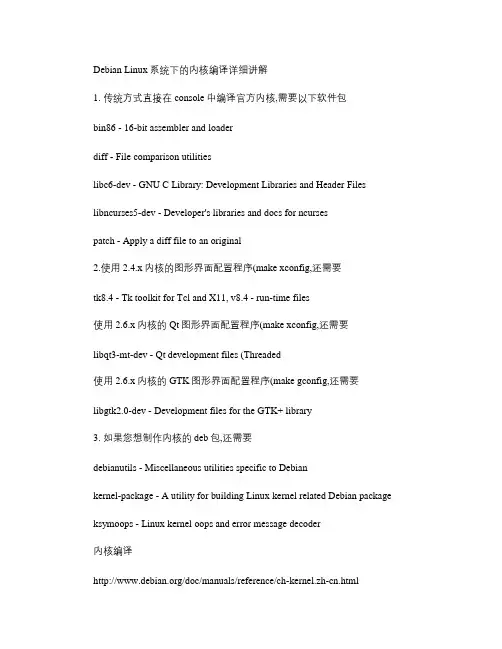

Debian Linux系统下的内核编译详细讲解1. 传统方式直接在console中编译官方内核,需要以下软件包bin86 - 16-bit assembler and loaderdiff - File comparison utilitieslibc6-dev - GNU C Library: Development Libraries and Header Files libncurses5-dev - Developer's libraries and docs for ncursespatch - Apply a diff file to an original2.使用2.4.x内核的图形界面配置程序(make xconfig,还需要tk8.4 - Tk toolkit for Tcl and X11, v8.4 - run-time files使用2.6.x内核的Qt图形界面配置程序(make xconfig,还需要libqt3-mt-dev - Qt development files (Threaded使用2.6.x内核的GTK图形界面配置程序(make gconfig,还需要libgtk2.0-dev - Development files for the GTK+ library3. 如果您想制作内核的deb包,还需要debianutils - Miscellaneous utilities specific to Debiankernel-package - A utility for building Linux kernel related Debian package ksymoops - Linux kernel oops and error message decoder内核编译/doc/manuals/reference/ch-kernel.zh-cn.htmlDebian unstable发行版中的gcc、binutils和modutils可用来编译最新的Linux 内核。

Serial Programming HOWTOLinux 串口编程中英文简体对照1.0版翻译： Carol Li原作：Gary Frerking gary@ Peter BaumannThis document describes how to program communications with devices over a serial port on a Linux box.本文档记述了如何在Linux设备上通过串口进行通信的程序开发中文简体版以英文 1.01 版为原文，同时参考了繁体中文的串口编程HOWTO1.Introduction 简介This is the Linux Serial Programming HOWTO. Allabout how to program communications with otherdevices / computers over a serial line underLinux. Different techniques are explained:Canonical I/O (only complete lines aretransmitted/received), asyncronous I/O, andwaiting for input from multiple sources.This is the first update to the initial releaseof the Linux Serial Programming HOWTO. Theprimary purpose of this update is to change theauthor information and convert the document toDocBook format. In terms of technical content,very little if anything has changed at thistime. Sweeping changes to the technical content aren't going to happen overnight, but I'll work on it as much as time allows.If you've been waiting in the wings for someone to take over this HOWTO, you've gotten yourwish. Please send me any and all feedback youhave, it'd be very much appreciated.All examples were tested using a i386 LinuxKernel 2.0.29.本文是为 Linux 串口程序编写的 HOWTO. 主要讨论如何在 Linux 环境下，编写串口与其它计算机设备进行通讯的程序。

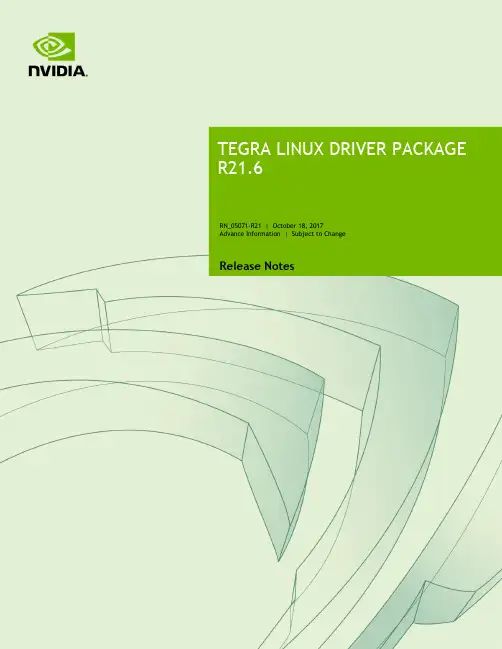

RN_05071-R21 | October 18, 2017 Advance Information | Subject to Change Release NotesRN_05071-R21Table of Contents1.0About this Release (3)1.1Login Credentials (3)1.2Top Fixed Issues (3)2.0Known Issues (6)3.0Implementation Notes (7)3.1GStreamer 1.0 Support (7)3.2Updates to CPU Clock Frequencies and Voltages (7)3.3Fuse Devices as Late In Process as Possible (7)4.0About Earlier Releases (8)Release 21.5, 13 Jul 2016 (8)Release 21.4, 10 Jul 2015 (9)Release 21.3, 26 Feb 2015 (12)1.0The NVIDIA® Tegra® Linux Driver Package supports development of platforms running: ④NVIDIA® Tegra® K1 32 Bit series computer-on-a-chip④Linux kernel 3.10.40④Git tag for the release: tegra-l4t-r21.61.1Login CredentialsThe default Jetson TK1 login credentials are:④Username: ubuntu④Password: ubuntuNote: A debug console is available via female-to-female NULL modem cable.The console is not password protected.1.2Top Fixed IssuesThe resolved issues are as follows, for a complete list of kernel fixes, see:https:///gitweb/?p=linux-3.10.gitRefer to l4t/l4t-r21 under heads to see the complete list of kernel changes.The release tag for this release is tegra-l4t-r21.6.I/O Bus InterfaceI/O Bus interfaces related issues resolved in this release are as follows.MemoryMemory related issues resolved in this release are as follows.MultimediaMultimedia related issues resolved in this release are as follows.2.0This section provides details about issues that were discovered during development and QA but not resolved prior to this release of the Tegra Linux Driver Package.3.03.1GStreamer 1.0 SupportThis release includes Gstreamer 1.0 support. The Nvgstplayer application defaults to Gstreamer 0.1. To run the 1.0 version, use the full path to the binary.3.2Updates to CPU Clock Frequencies and VoltagesCPU clock frequencies for UCM1 and UCM2, and CPU voltages for UCM2 are updated in this release to reflect guaranteed maximum frequencies for Tegra K1 processors over the operating lifetime of the product. There are no changes to other clocks, specifications, or voltages.You must update the L4T software release to R21.5 or following. See the Jetson TK1 Datasheet for more information about these specifications.3.3Fuse Devices as Late In Process as PossibleDo not fuse for secure boot until the very end of the manufacturing process. Failure analysis by NVIDIA, as part of the RMA process, is not possible with fused devices.4.0Release 21.5, 13 Jul 2016What’s NewThis release fixes some issues that were found during continued testing and adds/enhances the following feature(s).④Updates for CPU clock frequencies (UCM1 and UCM2), and CPU voltages (UCM2). SeeUpdates to CPU Clock Frequencies and Voltages.④Added support for Hynix H5TC4G63CFR-RDA as an alternate DRAM for Jetson TK1.Updated BCT and EMC-DVFS tables are present to support this part. The updated BCT and kernel provide support for both DRAM based upon RAMCODE strapping options. Top Issues Fixed Since Last ReleaseThe following issues have been resolved in this release. for a complete list of kernel fixes, see the following web site:/gitweb/?p=linux-3.10.git;a=shortlog;h=refs/heads/l4t/l4t-r21.5System[200127047] cudaStreamAttachMemAsync bonds unified memory, memory consumption is accumulated until overflowKernel[200146488] OpenOCD JTAG debugging support needed[200141741] Kernel oops after rmmod g_ether.ko in device mode of OTG[1726087] xhci controller stops working after wireless dongle removal[1709814] Kernel crash during reboot stress with MSELECT error and kernel exception: "drivers/platform/tegra/hier_ictlr/hier_ictlr.c:54"Multimedia[200208334] Windows created by video playback using URI option of nvgstplayer-0.10 are not automatically closed[1775740] H.264 support needed for Main and High Profile in omxh264enc (gstreamer plugin)Camera[200215774] Low FPS at 1280x720 with USB camera (USB 2.0)[200204206] CSI preview launch is unsuccessful with first attempt on boot [200106274] Errors displayed while launching CSI cameraPower[200205110] Device shuts down when we wake up from Deep Sleep (LP0) by pressing power button[1679372] nvprof disables GPU rail gatingRelease 21.4, 10 Jul 2015What’s New In this ReleaseThis release fixes some issues that were found during continued testing and adds/enhances the following feature(s).④[1566270] Enabled Tegra system profiler④[1644596] Fixed gst-omx compile time errors, added README and source files④[1551864] Updated Jetson TK1 pinmux configuration④[1542346] Rework of modeswitch/vt-switch handling in X/OpenGL④[1487603] xhci firmware cfgtbl and logging enhancements④[888312] Enabled and tuned CPU frequency boost on input event④[1568275] Adds support for ABI 17, 18 and 19④[1649593] Image rotation support documentation④[1625262] Improved device tuning on Jetson TK1Top Issues Fixed Since Last ReleaseThe following issues have been resolved in this release.System④[200046014] X crashes due to segmentation fault④[200081242] System does not wake from Suspend (LP1)④[200094751] Issues with loading libcuda.so.1.1④[200084665] “N o space left on device” error displayed with enough space available ondevice④[200077334] TegraK1 GPU error displays when GPU is locked at a high frequency④[200062085 ] read_ahead_kb size of removable SDcards/MicroSDs resets to 128 from 2048after hotplug, leading to proportional drop in read performance④[200040915 ] "xHCI xhci_drop_endpoint called with disabled ep ea70d3c0" errordisplayed from xhci.c and connection is reset when connecting USB 3.0 hub to Belkin USB 3.0 hub④[200036424] System becomes unresponsive when entering Deep Sleep (LP0) when HDMIis disconnected after boot④[200032923] While pmu_destroy is running there is a possibility pmu init is scheduled ina different thread, causing exception④[200006918] Incorrect board revision present in major_revision causing board specificservices and settings to be unsuccessful④[1640551] Long delays occur in nvmap during boot④[1639229] Memory leak and performance degradation occur when changing EGLcontexts④[1599195] Need correct settings for VBR (constant QP) mode④[1596489] No support for null buffers as arguments in glDeleteBuffers()④[1581432] Need Tegra WDT FIQ function enabled④[1580265] HDMI parent clock frequency calculation incorrect in some casesKernel④Added Tegra Profiler support④Enabled Watch Dog Timer support④Fixed race condition in programming PTC flush registers. This race condition results inPTC flush not happening as intended and can cause either SMMU fault or previous stale mapping access④Improved SATA stability④Improved vic frequency scaling tuning parameter④Modified the way we load nvhost firmware④[200057068] Removed invalid gk20a memory allocation error message④[200087363] Linux kernel headers include x86 ELF files causing unsuccessful on-boardmodule compilationDisplay④[200102860] Display is blank after hot plugging HDMI after boot④[1467960] oom-killer invocation occurs with heavy graphical corruption and screenblanking in low memory situations when stress testing screen orientation changes④[200080781] Mode setting unsuccessful for some refresh rates④[200081502] MSELECT error and kernel exception display during reboot stress testing Graphics④ [200101677] Race condition in omx-il while loading EGL library④[1617701] Using EGLImage for fast CPU read/write access on textures and framebufferscauses segmentation fault④[200036737] X crashes due to invalid eventMultimedia④[200116564]Audio corruption from first aplay playback after reboot④[200107328] Added DRC support in gst-omx 1.0④[200106354] Nvgstplayer-1.0 video playback windows (created with URI option) notautomatically closed④[200102340 ] Sequential image capture using run time command (j:<count>) with a USBcamera is unsuccessful with nvgstcapture-0.10④[200100485] Decoding interlace video crashes when POC=2④[200100179] Playback of captured video (using H.264 encode and AVI container) isunsuccessful④[200099694 ] No audio heard from nvgstplayer-1.0 playback of 00001.MTS④[200098386] Support for resizing and positioning of the overlay screen with gstreamer-1.0 needed④[200091380] Playback of low bit-rate WAV audio files with nvgstplayer-0.10 and aplay isunsuccessful④[200087353] Need insertion of SPS/PPS at IDR/I frame④[1612520] Audio corruption occurs when playing video through some applications④[200078535] Multi channel audio file playback with nvgstplayer-0.10 is unsuccessful④[200078609] "Creation of video pipeline failed" message displays when stopping andresuming RTSP streams that include both audio and video④[200077258] Corruption displayed during playback of video captured with a USBcamera with MPEG4 encoder and MP4 container④[200071832] Loop-forever functionality is not working in nvgstplayer-1.0④[200062801] Audio corruption heard from long-duration MP3 RTSP streaming④[200040752] Audio plays through HDMI when audio output device selected is Speakers(tegra-rt5639), after reboot④[200025919] Need support for setting width, height and position of window innvgstplayer④[200003429] Multi-channel audio playback through audio receiver via HDMI is notproperly rendered④ [1646878] omxh264dec plugin may cause decode pipeline deadlock④[1645989J PEG Decoding to NVMM type yuv needed④[1640447] Image rotation support needed④[1628974] Memory leak in gstreamer pipeline④[1628147] Auto MIPI calibration in V4L2 driver needed④ [1618581] Nvmap buffer leak occurs in nvgstreamer decode plugin④[1611835] Need support for iframeinterval parameter in gst-omx plugin for gstreamer ④[1503770] USB headset not automatically listed as audio output device in sound settings④[1458105] RTSP stream playback unsuccessful④[1456080] nvvidconv-1.0 code cleanup and replacement for deprecated implementation ④[200077151] Fixed caps negotiation in case of nvmm to raw conversion for nvcamerasrcin gst-nvvidconv-1.0④[200074271] Segmentation fault occurs when switching to video mode in Nvgstcapture-1.0Camera④[200111272] No discernable difference between preview and capture with AEROIselected④[200081357] Capture with nvgstcapture-1.0 inside a sudo user created directory causessegmentation fault④[200080744] No nvgstcapture option to select a specific USB camera when multiple USBcamera devices are connected④[200081334] Unable to stop image capture with user interrupt on first attempt④[200080743] Corruption and grey areas occur in video and image preview and captureat 1280x720 resolution with USB HD camera④ [200074282] Running out of memory during 25000 image capture stress testing withnvgstcapture-1.0, USB camera, and hdmioverlaysink results in segmentation fault④[1581879] Camera timeout occurs with suspend and resume when the lock screen isdisabledRelease 21.3, 26 Feb 2015W hat’s New In this ReleaseThis release fixes some issues that were found during continued testing and adds/enhances the following feature(s).④Implemented skip-frames and disable-dpb properties for gst-omx plugin. See L4TMultimedia User Guide for more information.④Added encoding and scaling support in gst-nvvidconv-1.0. See L4T Multimedia UserGuide for more information.④Tegra watchdog support④Enabled ramoops debugging support④CSI_B/CSI_C support in Tegra V4L2/soc_camera driverTop Issues Fixed Since Last ReleaseThe following issues have been resolved in this release.System④[1506870] Unnecessary debug messages from NVAVP kernel code display④[1549799] Improved flashing tools compatibility with additional eMMC devices whereboot partition size differ from Jetson TK 1④[1561360] Intermittent "azx_get_response" kernel warning displays during systemtesting④[1582388] Intermittent “k ernel_warning: "hda-intel azx_get_response timeout" warningdisplays during system testing④[200015967] The error “gk20a gk20a.0: gk20a_fifo_hand le_sched_error: fifo is waiting forctx swi tch for 100 ms,ch = 3” may occur when running WebGL applications④[200054390] Support RAM sizes for 4GB or greater in U-Boot④[1551864] Updated pinmux for Jetson TK 1 devices④[200046876] Resolved memory leak in gst-openmax④[200067410] Resolved issues related to use of Tegra-profiler④[200072946] Improved system stability during extended reboot stress testing④[200020671, 200031813] Improved compatibility with HDMI TVs and resiliency forunsupported modes④[1577947, 1435870] Improved stability of gk20a GPU driver④[200048667] Removed debug messages when loading VIC firmware④[200055546] Resolved gk20a stability issues regarding “gk20a_pmu_isr: pmu halt intrnot implemente d”④[200016313] Resolved gk20a stability issues regard ing “gk20a_pmu_enable_elpg():possible elpg refcnt mismatch“④[1557711] Enabled devsleep functionality only for mSATA connectors (disable devsleepon Jetson TK 1 SATA). This resolved issues on detection of certain SATA drives④[1566598] Improved stability of Jetson TK1 on-board EthernetCamera④[200074274] Resolved preview resolution switching with USB cameras in Nvgstcapture-1.0④[200063275] Fixed issue with 1080p encoding in Nvgstcapture-0.10④[200060263] Corrected preview resolution in Nvgstcapture-0.10④[200062376] Changed default preview sink in Nvgstcapture-1.0④[200049907] Resolved pauses during video recording specific to USB webcam inNvgstcapture-0.10④[200074237] Resolved cosmetic error messages when using USB cameras inNvgstcapture-1.0Multimedia④[200053327] Resolved errors in continuous encoding and decoding in libjpeg-8bhardware acceleration④[200067781] Fixed crash in port audio④[200045113] Improved H.264 decode latency④[1575862, 1576116] Resolved crash in H.264 decoder when video stream containsmultiple segments with different resolutions.④[200057071] Resolved infrequent error of “X Error of failed request: BadIDChoice” inNvgstplayerPower and Performance④[200070160] 792 megahertz (Mhz) BCT needs to be updated has incorrect memoryswizzleNoticeALL NVIDIA DESIGN SPECIFICATIONS, REFERENCE BOARDS, FILES, DRAWINGS, DIAGNOSTICS, LISTS, AND OTHER DOCUMENTS (TOGETHER AND SEPARATELY, "MATERIALS") ARE BEING PROVIDED "AS IS." NVIDIA MAKES NO WARRANTIES, EXPRESS, IMPLIED, STATUTORY, OR OTHERWISE WITH RESPECT TO THE MATERIALS, AND ALL EXPRESS OR IMPLIED CONDITIONS, REPRESENTATIONS AND WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OR CONDITION OF TITLE, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE AND ON-INFRINGEMENT, ARE HEREBY EXCLUDED TO THE MAXIMUM EXTENT PERMITTED BY LAW.Information furnished is believed to be accurate and reliable. However, NVIDIA Corporation assumes no responsibility for the consequences of use of such information or for any infringement of patents or other rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of NVIDIA Corporation. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. NVIDIA Corporation products are not authorized for use as critical components in life support devices or systems without express written approval of NVIDIA Corporation.TrademarksNVIDIA and the NVIDIA logo are trademarks or registered trademarks of NVIDIA Corporation in the United States and other countries. Other company and product names may be trademarks of the respective companies with which they are associated.Copyright© 2016 NVIDIA Corporation. All rights reserved.。

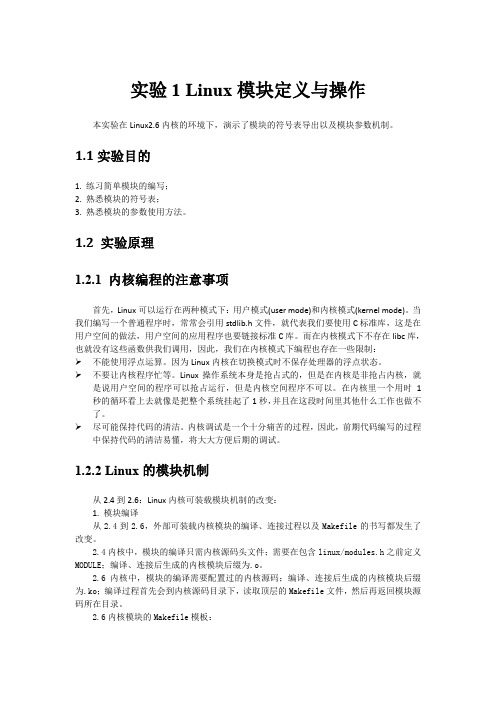

实验1 Linux模块定义与操作本实验在Linux2.6内核的环境下，演示了模块的符号表导出以及模块参数机制。

1.1实验目的1. 练习简单模块的编写；2. 熟悉模块的符号表；3. 熟悉模块的参数使用方法。

1.2 实验原理1.2.1 内核编程的注意事项首先，Linux可以运行在两种模式下：用户模式(user mode)和内核模式(kernel mode)。

当我们编写一个普通程序时，常常会引用stdlib.h文件，就代表我们要使用C标准库，这是在用户空间的做法，用户空间的应用程序也要链接标准C库。

而在内核模式下不存在libc库，也就没有这些函数供我们调用，因此，我们在内核模式下编程也存在一些限制：不能使用浮点运算。

因为Linux内核在切换模式时不保存处理器的浮点状态。

不要让内核程序忙等。

Linux操作系统本身是抢占式的，但是在内核是非抢占内核，就是说用户空间的程序可以抢占运行，但是内核空间程序不可以。

在内核里一个用时1秒的循环看上去就像是把整个系统挂起了1秒，并且在这段时间里其他什么工作也做不了。

尽可能保持代码的清洁。

内核调试是一个十分痛苦的过程，因此，前期代码编写的过程中保持代码的清洁易懂，将大大方便后期的调试。

1.2.2 Linux的模块机制从2.4到2.6：Linux内核可装载模块机制的改变：1. 模块编译从2.4到2.6，外部可装载内核模块的编译、连接过程以及Makefile的书写都发生了改变。

2.4内核中，模块的编译只需内核源码头文件；需要在包含linux/modules.h之前定义MODULE；编译、连接后生成的内核模块后缀为.o。

2.6内核中，模块的编译需要配置过的内核源码；编译、连接后生成的内核模块后缀为.ko；编译过程首先会到内核源码目录下，读取顶层的Makefile文件，然后再返回模块源码所在目录。

2.6内核模块的Makefile模板：KERNELRELEASE是在内核源码的顶层Makefile中定义的一个变量，在第一次读取执行此Makefile时，KERNELRELEASE没有被定义，所以make将读取执行else之后的内容。

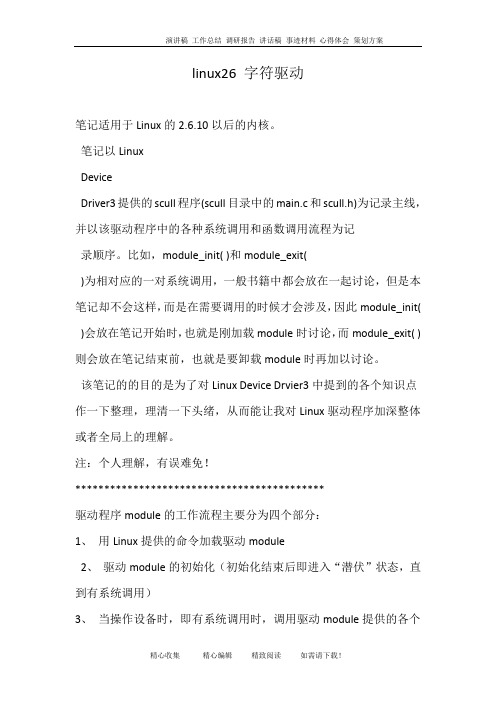

linux26 字符驱动笔记适用于Linux的2.6.10以后的内核。

笔记以LinuxDeviceDriver3提供的scull程序(scull目录中的main.c和scull.h)为记录主线，并以该驱动程序中的各种系统调用和函数调用流程为记录顺序。

比如，module_init( )和module_exit()为相对应的一对系统调用，一般书籍中都会放在一起讨论，但是本笔记却不会这样，而是在需要调用的时候才会涉及，因此module_init( )会放在笔记开始时，也就是刚加载module时讨论，而module_exit( )则会放在笔记结束前，也就是要卸载module时再加以讨论。

该笔记的的目的是为了对Linux Device Drvier3中提到的各个知识点作一下整理，理清一下头绪，从而能让我对Linux驱动程序加深整体或者全局上的理解。

注：个人理解，有误难免！*******************************************驱动程序module的工作流程主要分为四个部分：1、用Linux提供的命令加载驱动module2、驱动module的初始化（初始化结束后即进入“潜伏”状态，直到有系统调用）3、当操作设备时，即有系统调用时，调用驱动module提供的各个服务函数4、卸载驱动module一、驱动程序的加载Linux驱动程序分为两种形式：一种是直接编译进内核，另一种是编译成module形式，然后在需要该驱动module时手动加载。

对于前者，还有待学习。

Module形式的驱动，Linux提供了两个命令用来加载：modprobe和insmod。

其中modprobe可以解决驱动module的依赖性，即假如正加载的驱动module若引用了其他module提供的内核符号或者其他资源，则modprobe就会自动加载那些module，不过，使用modprobe时，必须把要加载的驱动module放在当前模块搜索路径中。

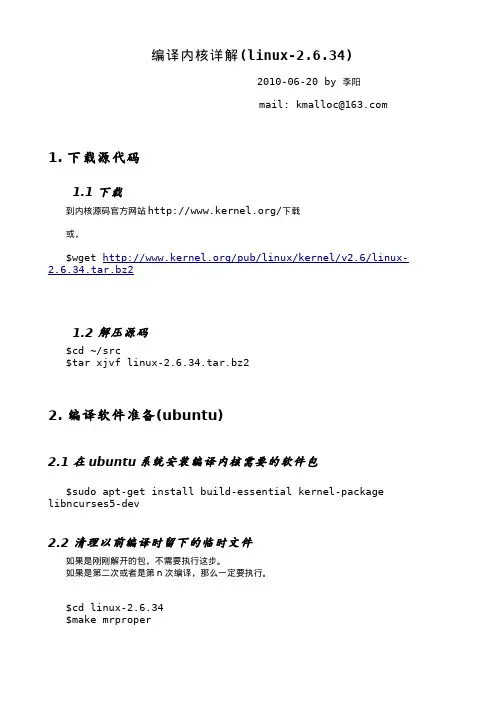

编译内核详解(linux-2.6.34)2010-06-20 by 李阳mail: kmalloc@ 1. 下载源代码1.1 下载到内核源码官方网站/下载或，$wget /pub/linux/kernel/v2.6/linux-2.6.34.tar.bz21.2 解压源码$cd ~/src$tar xjvf linux-2.6.34.tar.bz22. 编译软件准备(ubuntu)2.1 在ubuntu系统安装编译内核需要的软件包$sudo apt-get install build-essential kernel-package libncurses5-dev2.2 清理以前编译时留下的临时文件如果是刚刚解开的包，不需要执行这步。

如果是第二次或者是第n次编译，那么一定要执行。

$cd linux-2.6.34$make mrproper2.3 拷贝已有的配置文件$cp /boot/config-`uname -r` ./.config2.4 自动精简内核配置(将你需要用的所用硬件都插在电脑上, 这样会根据现在电脑链接的硬件进行自动配置一下，也可以省略此步)make localmodconfig3. 配置内核3.1 配置内核的工具方法一:$make menuconfig方法二:xconfig. 安装xconfig$sudo apt-get install libqt3-headers libqt3-mt-dev libqt3-compat-headers libqt3-mt. 使用xconfig配置内核$sudo make xconfig. xconfig选项意义：圆中点是编译成可以随时加人的模块(以下简称M)，方块中一勾是编译进入内核(以下简称Y)，空就是不要(简称N)3.2 内核配置及优化General setup --->[* ] Prompt for development and/or incomplete code/drivers <=== 显示尚在开发中或尚未完成的代码和驱动. 我不是内核或驱动开发人员。

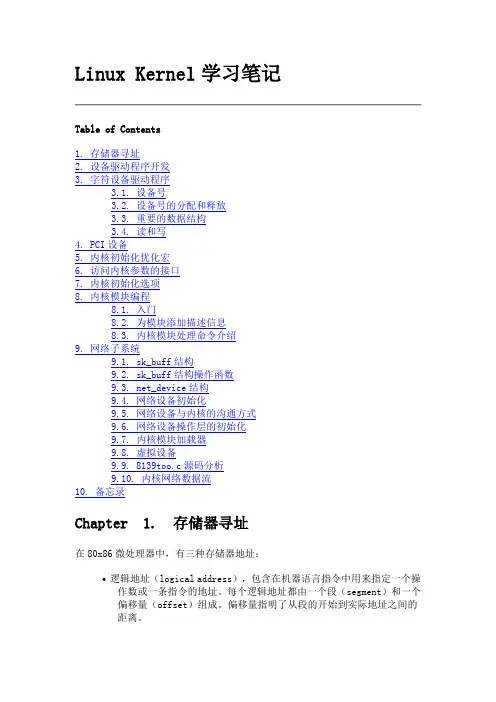

Linux Kernel学习笔记 Table of Contents 1. 存储器寻址 2. 设备驱动程序开发 3. 字符设备驱动程序 3.1. 设备号 3.2. 设备号的分配和释放 3.3. 重要的数据结构 3.4. 读和写 4. PCI设备 5. 内核初始化优化宏 6. 访问内核参数的接口 7. 内核初始化选项 8. 内核模块编程 8.1. 入门 8.2. 为模块添加描述信息 8.3. 内核模块处理命令介绍 9. 网络子系统 9.1. sk_buff结构 9.2. sk_buff结构操作函数 9.3. net_device结构 9.4. 网络设备初始化 9.5. 网络设备与内核的沟通方式 9.6. 网络设备操作层的初始化 9.7. 内核模块加载器 9.8. 虚拟设备 9.9. 8139too.c源码分析 9.10. 内核网络数据流 10. 备忘录

Chapter 1. 存储器寻址 在80x86微处理器中，有三种存储器地址：  逻辑地址（logical address），包含在机器语言指令中用来指定一个操作数或一条指令的地址。每个逻辑地址都由一个段（segment）和一个偏移量（offset）组成。偏移量指明了从段的开始到实际地址之间的距离。  线性地址（linear address）（也称为虚拟地址，virtual address），它是一个32位无符号整数，可用以表达高达4G的地址（2的32次方）。通常以十六进制数表示，值的范围从0X00000000到0Xffffffff。  物理地址（physical address），用于存储器芯片级存储单元寻址，它们与从微处理器的地址引脚发送到存储器总线上的电信号相对应。物理地址由32位无符号整数表示。

CPU控制单元通过一种称为分段单元（segmentation unit）的硬件电路把一个逻辑地址转换成线性地址;线性地址又通过一个分页单元（paging unit）的硬件电路把一个线性地址转换成物理地址。

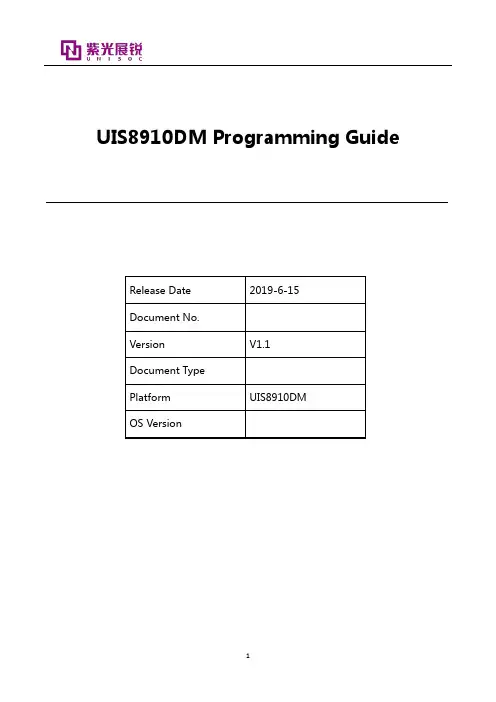

UIS8910DM Programming Guide声明Statement本文件所含数据和信息都属于紫光展锐所有的机密信息，紫光展锐保留所有相关权利。
