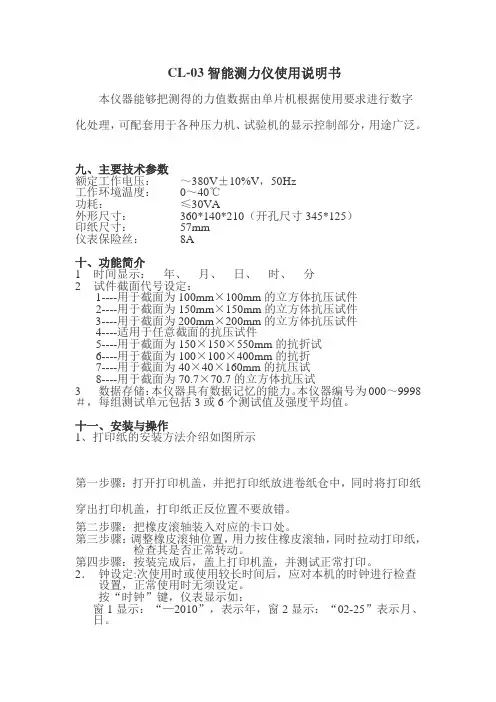

CL-03智能测力仪使用说明书
本仪器能够把测得的力值数据由单片机根据使用要求进行数字
化处理，可配套用于各种压力机、试验机的显示控制部分，用途广泛。
九、主要技术参数
额定工作电压：～380V±10%V，50Hz
工作环境温度：0～40℃
功耗：≤30VA
外形尺寸：360*140*210（开孔尺寸345*125）
印纸尺寸：57mm
仪表保险丝：8A
十、功能简介
1时间显示：年、月、日、时、分
2试件截面代号设定：
1----用于截面为100mm×100mm的立方体抗压试件
2----用于截面为150mm×150mm的立方体抗压试件
3----用于截面为200mm×200mm的立方体抗压试件
4----适用于任意截面的抗压试件
5----用于截面为150×150×550mm的抗折试
6----用于截面为100×100×400mm的抗折
7----用于截面为40×40×160mm的抗压试
8----用于截面为70.7×70.7的立方体抗压试
3 数据存储：本仪器具有数据记忆的能力。本仪器编号为000～9998＃，每组测试单元包括3或6个测试值及强度平均值。
十一、安装与操作
1、打印纸的安装方法介绍如图所示
第一步骤：打开打印机盖，并把打印纸放进卷纸仓中，同时将打印纸穿出打印机盖，打印纸正反位置不要放错。
第二步骤：把橡皮滚轴装入对应的卡口处。
第三步骤：调整橡皮滚轴位置，用力按住橡皮滚轴，同时拉动打印纸，检查其是否正常转动。
第四步骤：按装完成后，盖上打印机盖，并测试正常打印。
2．钟设定:次使用时或使用较长时间后，应对本机的时钟进行检查设置，正常使用时无须设定。
按“时钟”键，仪表显示如：
窗1显示：“—2010”，表示年，窗2显示：“02-25”表示月、日。
如果不正确可输入数字键修改闪烁位，按“退出”键移动闪烁位，修改完年月日后按“确认”键，仪表：
窗1显示：“---08”表示小时。
窗2显示：“20-10”表示分钟和秒。
如果不正确同样可用数字键和“退出”键（实现移位）进行修改，“确认”键保存退出。
十二、用户的试验操作
（１）放好试件，转动丝杆使上压板不接触试件为限，开启压力机，升起油缸后，按“清零”键清除皮重；
（2）按“检测”键，仪表显示：
窗１显示：“d 0 0 0 1”２显示：“S---2”
“d 0 0 0 1”中的0001是指试件的组号，按“确认”键，窗2闪烁,显示“S---2”，输入截面代号后再按“确认”，开始该组的试验。
其中“S---2”中的2指截面代号为2。截面代号参照“功能”第2条所示。
（3）组号、截面代号的输入：如做第１３２组试件组，键入数字0,1，3，2 后，窗1显示d ０１３２，按“确认”，窗２闪烁,显示"S---2",表示截面代号2,试件为150×150 ，按“确认”键后开始试验。（4）抗压试验过程：输完组号，截面代号后，用户可连续进行试件的压试：放入第1个试件,打开送油阀加载至试件破裂，打开回油阀，（峰值保持9秒，如发现此次试验有问题，可按“0”键取消此次数据）换入第2块试件，加载至试件破裂，（同样峰值保持9秒，如发现此次试验有问题，可按“0”键取消此次数据）再换入第3块试件，该块试件结束后，仪表自动打印出该组的试验数据（如用户选择的截面代号是7或8时，要进行到第六块试件结束后，仪表才打印出该组试验的结果），然后可继续做下一组试验，或按“退出”键退出自动试验状态。
试验过程中想取消某组试件的试验结果，可直接按“检测”键，重新输入组号、截面号，开始试验,仪表会记录该组的最新数据。
（5）数据的查询和打印：
（Ａ）做完一组试件后，仪表自动打印出试验结果，同时判断数据是否合格，如合格则计算平均值。
（Ｂ）查询：按“查询”，窗２显示“ｄ００００”，且个位闪烁，此时输入组号，如０１２（查第１２组的试验数据），“确认”，仪表显示：
窗１８００.２０（此试件的试验峰值）
窗２３--１（３块试件中的第１块），再“确认”，窗２显示“３--２”，窗１显示该组第２块试件的峰值，再“确认”，显示第３块试件峰值，“确认”至返回。
（Ｃ）查询并打印：按“查询”，窗２显示“ｄ００００”，输入想打印的组号，如０１２，再按“打印”即可打印出第１２组试件的试验结果。
合格数据打印格式：不合格数据打印格式：
试验机检测值试验机检测值
（KN）（MPa）（KN）（MPa）
1：800.01 35.55 1：167.98 7.5
2：800.46 35.57 2：251.58 11.2
3：800.24 35.56 3：355.15 14.9
平均值：平均值：
800.20KN ------
35.56MPa ------
001# S:15*15 001# S:15*15 2004年05月10日14:21 2004年05月10日14:21
计量的标定和检定操作
本机在使用中除法定计量工作人员外，用户请勿随意进入标定状态，否则会将内部数据破坏，本机将不能正常使用。
一、标定操作：
仪器通电三分钟后，在随机状态下用三等标准测力机进行，步骤如下：
1、标定点的设定
本仪表各标定点在出厂时已设定好。标定点分别为满量程的10%、20%、40%、60%、80%、100%。
2000kN的压力机标定点为：（200kN、400kN、800kN、1200kN、1600kN、2000kN、0000 kN）。
300kN的压力机表定点为（50kN、100kN、150kN、200kN、250kN、300kN、0000kN）
下面以2000kN压力机为例，标定点设定：
按“标定”键，
1窗显示：b - - - -
2窗显示：- - - - -
后输入密码11111（或12111111）按“确认”键后，仪表进入标定点设定状态：
1窗显示：b - - - 1 （表示标定1点）
2窗显示：0 2 0 0 （标准力值点设定）按下“确认”键，进入下一个标定点设定。在2窗口设定第二点标准力值点，以此方法设定所有的标准力值设定点。
以200T 压力机为例，设计了一套标定点，如按照下表来标定，可从小吨位至大吨位满足全量程的精度要求。推荐标定点为：
1 窗口：
2 窗口：
b －－－1 0200 （10%）
b －－－2 0400 （20%）
b －－－3 0800 （40%）
b －－－4 1200 （60%）
b －－－5 1600 （80%）
b －－－6 2000 （100%）
b －－－7 0000（表示结束，必须有）
过载保护点已经按照满量程的103%自动完成设置。
因为本仪器最多可标十个点，所以，标定点少于十时，在最后一点后，设置一个0点，表示标定点结束。当标定点为十个时，不须标定结束点。
2、标定点的标定
（1）按“标定”键，
1窗显示：b - - - -
2窗显示：- - - - -
后输入密码22222（或12000000）按“确认”键后，仪表进入标定状态：
1窗显示：0 0 0.0 4 （随机数，无意义）
2窗显示：b 0 0 0 0 （表示标定0点0kN）（2）平稳加载，在测力环即将接近上压板时，按“确认”键使得仪器确认零点，同时进入第1标定点的标定。
1窗口显示：189.3 0 （随机数，无意义）
2窗口显示：b 0 2 0 0 （表示标定1
点,200kN,）
平稳加载当测力环指针接近下窗口显示的标准力
值时，放慢加载速度，当试验机到达该标准点的同时（以标准测力环读数为依据），按下“确认”键，使1窗口实际压力与2窗口标准力值相同, 同时进入下一个标定点。
（3）依次标定各点，直到仪器自动退出标定状态,（或按“退出”键退出,）标定结束。CL-03 可标0-9共10个点，如按照我厂推荐的200T试验机的相应比例（见生产厂家使用指南）来标定，可满足全量程的精度要求。仪器也提供用户标≥2而≤10的点数，如用户标的最后一个点没到满量程，仪器自动攀至满量程。
二、标定数据保存
按“标定”键后，
1 窗显示：b - - - -
2 窗显示：- - - - -
输入密码44444（或82123150）按"确认"键确认，仪器显示“.....”之后回到正常状态，既完成标定数据的保存。
三、计量检定操作
1、预热：仪器通电三分钟后，加荷至试验机满量程后卸载，重复三次；
2、检定零点：按“检定”键，仪器进入检定状态，
1窗显示: - 0 0.2 1 （实际压力值）
2窗显示: d 0 0 0 0 （表示检定零点）
2窗显示：d0000,表示检的第0 个点为0 kN。
1窗显示的为实际力值，空载状态下如该值不为零，则平稳加载，使测力环接近上压板，按“清零”键，仪表显示为000.00时按"确认"键（±0.3为允许值）。
3、检定其它各点：零点确认后进入第1个点的检定。仪表显示：
1窗显示: 198.0 0 （实际压力值）2窗显示： d 0 2 0 0（表示检第1点,200kN）
键入要检定的第1点的压力值，例为额定载荷的10%，以2000kN压力试验机为例，即200KN，1窗显示实际力值，平稳加载，当标准测力环上读出的力值接近要检定的力值时放慢加荷速率，当到达200KN时，按下“确认”键。进入第2点的检定。
2窗显示：d 0 4 0 0，
平稳加载，当标准测力环上读出的力值到达400 kN时，按下“确认”键。同理检定其他各点。
注：该仪表最多可检0-9共10个点，也可检少于10的点数，如只想检5个点，则在检完第5点之后不再输入，直接按“退出”键完成检定。仪器自动打印结果。
当仪器检完第10个点时，按“确认”键后，检定结束。仪器自动打印结果。
4、检定报告的人工打印：按“查询”键，在2窗按4个9，即2窗显示d9999，再按“打印”键就可以打印出上次检定的结果。（检定可检少于10的点数，打印时只打印检的点）。印检定结果如下：
检定数据：
标准力值（kN）测量结果（kN）
0:0000 0000.00
1:0200 0200.25
2:0400 0399.75
3:0800 0799.95
4:1200 1200.35
5:1600 1599.25
6:2000 1999.95
7:0000 0000.00
8:0000 0000.00
9:0000 0000.00
2003年01月9日14:25
依此表判断该试验机是否合格。如合格，则该次检定结束，不合格则需进入标定状态对该机重新标定。标定见“五、计量标定操作”。
四、量程设置
本仪器可通过设置不同量程而应用于不同吨位的压力试验机上，设量程为2000KN用于200吨试验机，设为300KN用于30吨，同理类推。
量程设置方法：按“标定”键后，
1 窗显示：b - - - -
2 窗显示：- - - -
输入密码88888，（或12888888）
按"确认"键确认，
2 窗显示仪器设置的量程，“E----”,按数字键可修改成不高于3000的任意值为本仪器量程，按"确认"键保存。
注：仪器在测力超出量程的3％时，报警输出，并在1窗显示"H H H H H"。
附录1传感器的自检方法如下：
（1）按“标定”输入5位密码99999，按“确认”键确认。（2）此时力值屏显示“--005”，速率屏显示“xxxxx”，并且最后一位数字在跳动，一会大，一会小。
（3）放一试块，随着压力机的受力，速率屏的数字在逐渐增大。（4）如无上述现象可肯定传感器有问题。
附录2：仪表简单故障排除方法：
