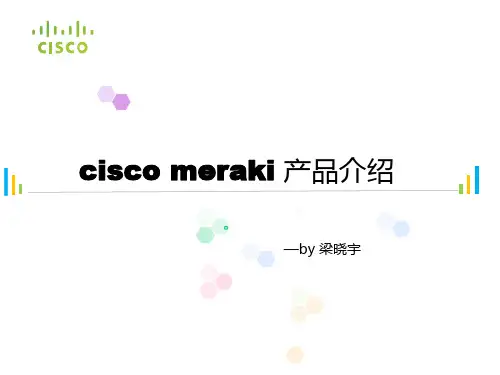

cisco meraki 产品介绍与技术原理 PPT

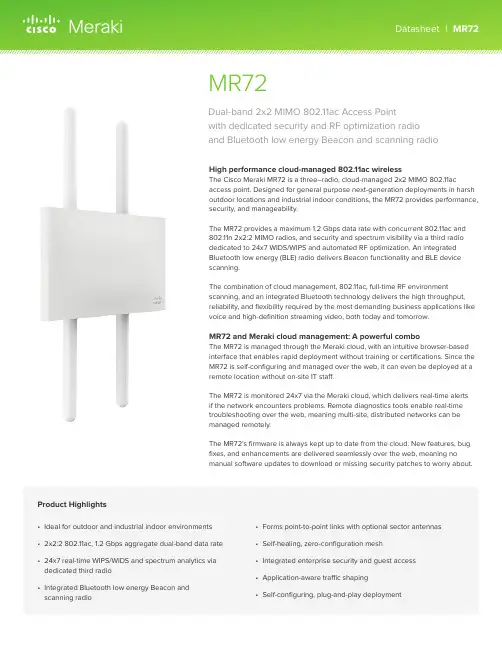

High performance cloud-managed 802.11ac wirelessThe Cisco Meraki MR72 is a three–radio, cloud-managed 2x2 MIMO 802.11acaccess point. Designed for general purpose next-generation deployments in harshoutdoor locations and industrial indoor conditions, the MR72 provides performance,security, and manageability.The MR72 provides a maximum 1.2 Gbps data rate with concurrent 802.11ac and802.11n 2x2:2 MIMO radios, and security and spectrum visibility via a third radiodedicated to 24x7 WIDS/WIPS and automated RF optimization. An integratedBluetooth low energy (BLE) radio delivers Beacon functionality and BLE devicescanning.The combination of cloud management, 802.11ac, full-time RF environmentscanning, and an integrated Bluetooth technology delivers the high throughput,reliability, and flexibility required by the most demanding business applications likevoice and high-definition streaming video, both today and tomorrow.MR72 and Meraki cloud management: A powerful comboThe MR72 is managed through the Meraki cloud, with an intuitive browser-basedinterface that enables rapid deployment without training or certifications. Since theMR72 is self-configuring and managed over the web, it can even be deployed at aremote location without on-site IT staff.The MR72 is monitored 24x7 via the Meraki cloud, which delivers real-time alertsif the network encounters problems. Remote diagnostics tools enable real-timetroubleshooting over the web, meaning multi-site, distributed networks can bemanaged remotely.The MR72’s firmware is always kept up to date from the cloud. New features, bugfixes, and enhancements are delivered seamlessly over the web, meaning nomanual software updates to download or missing security patches to worry about. Product Highlights• Ideal for outdoor and industrial indoor environments • 2x2:2 802.11ac, 1.2 Gbps aggregate dual-band data rate • 24x7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio• Integrated Bluetooth low energy Beacon and scanning radio • Forms point-to-point links with optional sector antennas • Self-healing, zero-configuration mesh• Integrated enterprise security and guest access• Application-aware traffic shaping• Self-configuring, plug-and-play deploymentMR72Dual-band 2x2 MIMO 802.11ac Access Pointwith dedicated security and RF optimization radio and Bluetooth low energy Beacon and scanning radioFeaturesAggregate data rate of up to 1.2 GbpsA 5 GHz 2x2:2 802.11ac radio and a 2.4 GHz 2x2:2 802.11n radio offer a maximum combined aggregate dual-band data rate of 1.2 Gbps. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR72 to support a higher client density than typical enterprise-class access points, resulting in fewer required APs for a given deployment. Band steering further enhances overall throughput, by moving 5 GHz-capable clients to the 5 GHz radio, maximizing the capacity in the 2.4 GHz range for older 802.11b/g clients.Rugged industrial designThe MR72 is designed and tested for salt spray, vibration, extreme thermal conditions, shock and dust and is IP67 rated, making it ideal for extreme environments. Despite its rugged design, MR72 has a low profile and is easy to deploy.Third radio dedicated to security and RF optimizationThe MR72’s sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio operates without any impact to client traffic or throughput.Bluetooth low energy Beacon and scanningAn integrated Bluetooth low energy radio provides seamless deployment of BLE Beacon functionality and effortless visibility of BLE devices within range of the AP. The MR72 enables the next generation of location-aware engagement right out of the box. Automatic cloud-based RF optimizationThe MR72’s sophisticated, automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The real-time full-spectrum RF analysis data collected by the dedicated third radio is continuously fed back to the Meraki cloud. The Meraki cloud then automatically tunes the MR72’s channel selection, transmit power, and client connection settings for optimal performance under the most challenging RF conditions.Secure wireless environments using 24x7 Air MarshalNo longer choose between a wireless intrusion prevention system (WIPS) and serving client data: thanks to the dedicated third radio, Air Marshal, a highly optimized built-in WIPS, scans continuously for threats and remediates them as commanded, all without disrupting client service. Alarms and optional auto-containment of rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.Integrated enterprise security and guest accessThe MR72 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.Application-aware traffic shapingThe MR72 includes an integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Also included is integrated support for Wireless Multi Media (WMM), 802.1p, and DSCP. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.High performance meshThe MR72’s advanced mesh technologies, like multi-channel routing protocols and multiple gateway support, make it possible to cover hard-to-wire areas and improve network resilience. In the event of a switch or cable failure, the MR72 will automatically revert to mesh mode.Self-configuring, self-optimizing, self-healingWhen plugged in, the MR72 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. The MR72 then self-optimizes, determining the ideal channel, transmit power, and client connection parameters. As necessary, it will also self-heal, responding automatically to switch failures and other errors.Recommended Use CasesOutdoor coverage for high client-density corporate campuses, educational institutions, metro Wi-Fi, and parks• Provide high-speed access to a large number of clients• Point-to-multipoint mesh Indoor coverage for industrial areas(e.g., warehouses, manufacturingfacilities)• Reliable coverage for scanner guns,security cameras, and POS devices• High speed-access for iPads, tabletsand laptopsZero-touch point-to-point links• Build a long-distance bridge betweentwo networks• Extend hotspot networks via mesh whilesimultaneously serving clientsSpecificationsRadiosOne 2.4 GHz 802.11b/g/n, one 5 GHz 802.11a/n/ac, one dedicated for dual-band WIPS & spectrum analysis, and one dedicated to Bluetooth low energy (2.4 GHz)Concurrent operations of all radiosMax data rate 1.2 Gbit/sOperating bands:FCC (US) CE (Europe)2.412-2.484 GHz 2.412-2.484 GHz5.150-5.250 GHz (UNII-1) 5.150-5.250 GHz (UNII-1)5.725 -5.825 GHz (UNII-3) 5.250-5.350 GHZ (UNII-2)5.470-5.600, 5.660-5.725 GHz (UNII-2e)802.11ac and 802.11n Capabilities2 x 2 multiple input, multiple output (MIMO) with two spatial streamsMaximal ratio combining (MRC)Beamforming20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)Packet aggregationPowerPower over Ethe rnet: 37 - 57 V (802.3af compatible)Power consumption: 13.87 W max (802.3af)Power over Ethernet injector sold separatelyMountingMounts to walls and vertical poles.Mounting hardware includedPhysical SecuritySecurity screw includedKensington lock hard pointAnti-tamper cable bayConcealed mount plateEnvironmentOperating temperature: -40 °F to 140 °F (-40 °C to 60 °C)IP67 environmental ratingPhysical Dimensions10.1” x 6.22” x 3.3” (256 mm x 158 mm x 83 mm) including mounting bracket Weight: 3.1 lbs. (1.4 kg)Interfaces 1 x 100/1000Base-T Ethernet (RJ45)Four external N-type female antenna connectorsSecurityIntegrated policy firewall (Identity Policy Manager)Mobile device policiesAir Marshal: Real-time WIPS (wireless intrusion prevention system) with alarmsRogue AP containmentGuest isolationTeleworker VPN with IPsecPCI compliance reportingWEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1XTKIP and AES encryptionVLAN tagging (802.1q)Quality of ServiceAdvanced Power Save (U-APSD)DSCP802.1pLayer 7 application traffic shaping and firewallMobilityPMK and OKC credential support for fast Layer 2 roamingL3 roamingLED Indicators1 power/booting/firmware upgrade statusRegulatoryRoHSFor country-specific regulatory information, please contact Meraki salesWarranty1 year hardware warranty with advanced replacement includedOrdering InformationMR72-HW Meraki MR72 Cloud Managed 802.11ac APMA-INJ-4-XX Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) MA-ANT-20 Meraki Dual-Band Omni AntennasMA-ANT-21 Meraki 5 GHz Sector AntennaMA-ANT-23 Meraki 2.4 GHz Sector AntennaMA-ANT-25 Meraki Dual-Band Patch AntennaNote: Meraki Enterprise license required.RF Performance Table* Maximum hardware capability shown above. Transmit power is configurable in increments of 1 dB and is automatically limited to comply with local regulatory settings.。

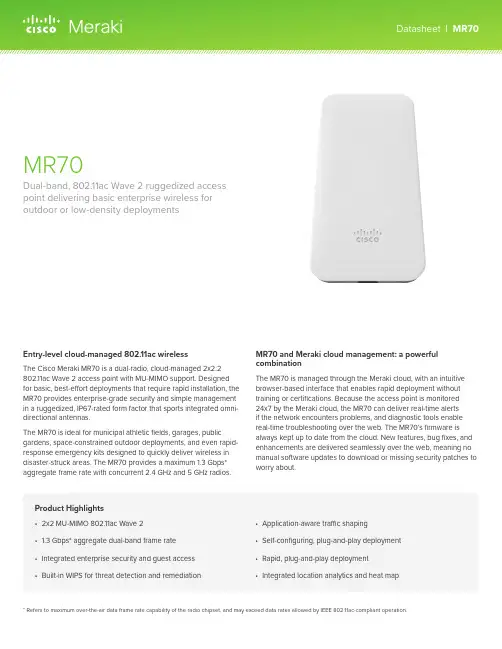

MR70Dual-band, 802.11ac Wave 2 ruggedized access point delivering basic enterprise wireless foroutdoor or low-density deploymentsEntry-level cloud-managed 802.11ac wirelessThe Cisco Meraki MR70 is a dual-radio, cloud-managed 2x2:2 802.11ac Wave 2 access point with MU-MIMO support. Designed for basic, best-effort deployments that require rapid installation, the MR70 provides enterprise-grade security and simple management in a ruggedized, IP67-rated form factor that sports integrated omni-directional antennas.The MR70 is ideal for municipal athletic fields, garages, public gardens, space-constrained outdoor deployments, and even rapid-response emergency kits designed to quickly deliver wireless in disaster-struck areas. The MR70 provides a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios.MR70 and Meraki cloud management: a powerful combinationThe MR70 is managed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without training or certifications. Because the access point is monitored24x7 by the Meraki cloud, the MR70 can deliver real-time alertsif the network encounters problems, and diagnostic tools enable real-time troubleshooting over the web. The MR70’s firmware is always kept up to date from the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web, meaning no manual software updates to download or missing security patches to worry about.Product Highlights• 2x2 MU-MIMO 802.11ac Wave 2• 1.3 Gbps* aggregate dual-band frame rate• Integrated enterprise security and guest access • Built-in WIPS for threat detection and remediation • Application-aware traffic shaping• Self-configuring, plug-and-play deployment • Rapid, plug-and-play deployment• Integrated location analytics and heat mapFeaturesAggregate data rate of up to 1.3 Gbps*A 5 GHz 2x2:2 radio supporting 80 MHz channel widths and a2.4 GHz 2x2:2 radio supporting 40 MHz channel widths offer a combined dual-radio aggregate frame rate of 1.3 Gbps*, with up to 866 Mbps in the 5 GHz band thanks to 802.11ac Wave 2 and 400 Mbps in the 2.4 GHz band.Multi User Multiple Input Multiple Output (MU-MIMO)With support for the 802.11ac Wave 2 standard, the MR70 offers MU-MIMO for more efficient transmission to multiple clients. This increases the total network performance and the improves the end user experience.Integrated enterprise security and guest accessThe MR70 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. Our policy firewall (Identity Policy Manager) enables group or device-based, granular access policy control.Secure wireless environments using Air MarshalThe MR70 comes equipped with Air Marshal, a built-in wireless intrusion prevention system (WIPS) for threat detection and attack remediation. MR70 access points will scan their environment opportunistically based on user-defined preferences. Alarms and auto-containment of malicious rogue APs are configured via flexible remediation policies, ensuring optimal security and performance in even the most challenging wireless environments.Application-aware traffic shapingThe MR70 includes an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.Self-configuring, self-optimizing, self-healingThe MR70’s advanced mesh technologies like multi-channel routing protocols and multiple gateway support enable scalable coverage of hard-to-wire areas with zero configuration. Mesh also improves network reliability — in the event of a switch or cable failure, the MR70 will automatically revert to mesh mode, providing continued gateway connectivity to clients.Rapid, plug-and-play deploymentWhen plugged in, the MR70 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. It self-optimizes, determining the ideal channel, transmit power, and client connection parameters.Integrated analyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with built-in location analytics that enables you to view visitor numbers, dwell time, repeat visit rates, and track foot traffic trends.SpecificationsRadios2.4 GHz 802.11b/g/n/ac client access radio5 GHz 802.11a/n/ac Wave 2 client access radioSupported frequency bands (country-specific restrictions apply):• 2.412-2.484 GHz• 5.150-5.250 GHz (UNII-1)• 5.250-5.350 GHZ (UNII-2)• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)• 5.725-5.825 GHz (UNII-3)802.11ac and 802.11n Capabilities2 x 2 multiple input, multiple output (MIMO) with two spatial streamsSU-MIMO and MU-MIMO supportMaximal ratio combining (MRC) & Beamforming20 and 40 MHz channels (2.4 GHz), 20, 40, and 80 MHz channels (5 GHz)Up to 256-QAM on both 2.4 GHz and 5 GHz bandsPacket aggregationPowerPower over Ethernet: 37-57 V (802.3af compatible)Power consumption: 11 W max (802.3af)Power over Ethernet injector sold separatelyMountingMounts to walls and vertical polesMounting hardware includedPhysical SecuritySecurity screw includedEnvironmentOperating temperature: -4 °F to 131 °F (-20 °C to 55 °C)IP67 environmental ratingOperating humidity: 5% to 95%Physical Dimensions9.65” x 4.53” x 1.18” (245 mm x 115 mm x 30 mm)Weight: 15.87 oz (0.45 kg)AntennaIntegrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 4.7 dBi gain at 5 GHz)Interfaces1x 100/1000 BASE-T Ethernet (RJ45)SecurityIntegrated Layer 7 firewall with mobile device policy managementReal-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolationVLAN tagging (802.1Q) and tunneling with IPSec VPNPCI compliance reportingWEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1XEAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIMTKIP and AES encryptionEnterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration Quality of ServiceAdvanced Power Save (U-APSD)WMM Access Categories with DSCP and 802.1p supportLayer 7 application traffic identification and shapingMobilityPMK, OKC, and 802.11r for fast Layer 2 roamingDistributed or centralized Layer 3 roamingLED Indicators1 power/booting/firmware upgrade statusRegulatoryRoHSEN50155: 2017 (Railway)For additional country-specific regulatory information, please contact Meraki sales Warranty1 year hardware warranty with advanced replacement includedOrdering InformationMR70-HW: Meraki MR70 Cloud Managed 802.11ac APMA-PWR-30W-XX: Meraki AC Adapter for MR Sseries (XX = US/EU/UK/AU)MA-INJ-4-XX: Cisco Meraki 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU) Note: Meraki Enterprise license requiredCompliance and StandardsSafety ApprovalsUL 60950-1CAN/CSA-C22.2 No. 60950-1IEC 60950-1EN 60950-1Radio ApprovalsCanada: FCC Part 15C, 15E, RSS-247Europe: EN 300 328, EN 301 893Australia/NZ: AS/NZS 4268Mexico: NOM-121For additional country-specific regulatory information, please contact Meraki Sales EMI Approvals (Class B)Canada: FCC Part 15B, ICES-003Europe: EN 301 489-1-17, EN 55032, EN 55024Australia/NZ: CISPR 32Exposure ApprovalsCanada: FCC Part 2, RSS-102Europe: EN 50385, EN 62311Australia: AS/NZS 2772。

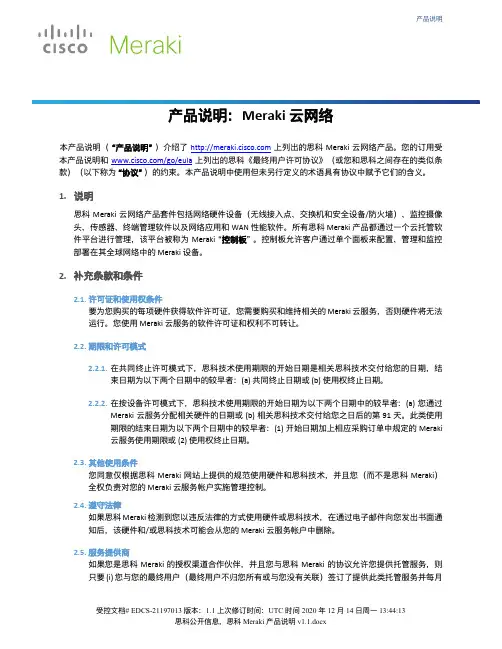

产品说明产品说明：Meraki 云网络本产品说明（“产品说明”）介绍了上列出的思科 Meraki 云网络产品。

您的订用受本产品说明和/go/eula上列出的思科《最终用户许可协议》（或您和思科之间存在的类似条款）（以下称为“协议”）的约束。

本产品说明中使用但未另行定义的术语具有协议中赋予它们的含义。

1.说明思科 Meraki 云网络产品套件包括网络硬件设备（无线接入点、交换机和安全设备/防火墙）、监控摄像头、传感器、终端管理软件以及网络应用和 WAN 性能软件。

所有思科 Meraki 产品都通过一个云托管软件平台进行管理，该平台被称为 Meraki “控制板”。

控制板允许客户通过单个面板来配置、管理和监控部署在其全球网络中的 Meraki 设备。

2.补充条款和条件2.1.许可证和使用权条件要为您购买的每项硬件获得软件许可证，您需要购买和维持相关的 Meraki 云服务，否则硬件将无法运行。

您使用 Meraki 云服务的软件许可证和权利不可转让。

2.2.期限和许可模式2.2.1.在共同终止许可模式下，思科技术使用期限的开始日期是相关思科技术交付给您的日期，结束日期为以下两个日期中的较早者：(a) 共同终止日期或 (b) 使用权终止日期。

2.2.2.在按设备许可模式下，思科技术使用期限的开始日期为以下两个日期中的较早者：(a) 您通过Meraki 云服务分配相关硬件的日期或 (b) 相关思科技术交付给您之日后的第 91 天。

此类使用期限的结束日期为以下两个日期中的较早者：(1) 开始日期加上相应采购订单中规定的 Meraki云服务使用期限或 (2) 使用权终止日期。

2.3.其他使用条件您同意仅根据思科 Meraki 网站上提供的规范使用硬件和思科技术，并且您（而不是思科 Meraki）全权负责对您的 Meraki 云服务帐户实施管理控制。

2.4.遵守法律如果思科 Meraki 检测到您以违反法律的方式使用硬件或思科技术，在通过电子邮件向您发出书面通知后，该硬件和/或思科技术可能会从您的 Meraki 云服务帐户中删除。

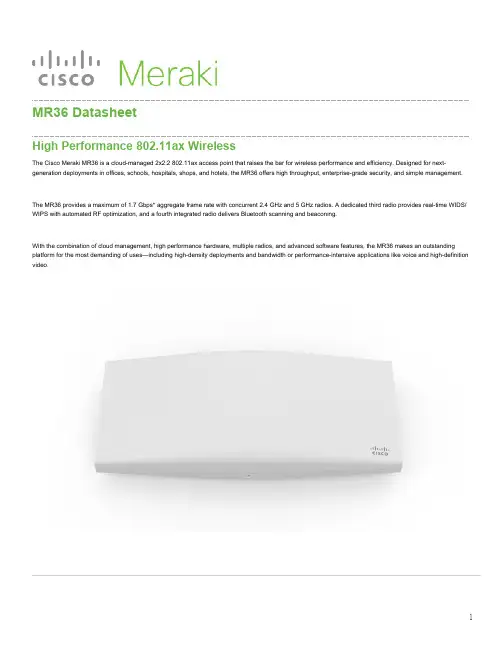

MR36 DatasheetHigh Performance 802.11ax WirelessThe Cisco Meraki MR36 is a cloud-managed 2x2:2 802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR36 offers high throughput, enterprise-grade security, and simple management.The MR36 provides a maximum of 1.7 Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS with automated RF optimization, and a fourth integrated radio delivers Bluetooth scanning and beaconing.With the combination of cloud management, high performance hardware, multiple radios, and advanced software features, the MR36 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.MR36 and Meraki Cloud ManagementManagement of the MR36 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR36 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle.The MR36’s firmware is automatically kept up to date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.Product Highlights•2x2:2 MU-MIMO 802.11ax• 1.7* Gbps dual-radio aggregate frame rate•24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio•Integrated Bluetooth Low Energy Beacon•Integrated scanning radio•Enhanced transmit power and receive sensitivity •Integrated enterprise security and guest access •Application-aware traffic shaping•Optimized for voice and video•Self-configuring, plug-and-play deployment•Sleek design blends into office environments•Full-time Wi-Fi location tracking via dedicated 3rd radioFeaturesDual–radio aggregate frame rate of up to 1.7 Gbps*5 GHz 2x2:2 radio and 2.4 GHz 2x2:2 radio offer a combined dual–radio aggregate frame rate of 1.7 Gbps*, with up to 1,201 Mbps in the 5 GHz band and 573 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR36 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients, from each AP.Multi User Multiple Input Multiple Output (MU-MIMO)With support for features of 802.11ax, the MR36 offers MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.Dedicated third radio delivers 24x7 wireless security and RF analyticsThe MR36’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data - a dedicated third radio means that all functions occur in real-time, without any impact to client traffic or AP throughput.Bluetooth Low Energy Beacon and scanning radioAn integrated fourth Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The MR36 enables * Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation.the next generation of location-aware applications while future proofing deployments, ensuring it’s ready for any new customer engagement strategies.Automatic cloud-based RF optimizationThe MR36’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.Integrated enterprise security and guest accessThe MR36 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integrationMeraki Systems Manager natively integrates with the MR36 to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.Application-aware traffic shapingThe MR36 includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.Voice and video optimizationsIndustry standard QoS features are built-in and easy to configure. Wireless MultiMedia (WMM) access categories, 802.1p, and DSCP standards support all ensure important applications get prioritized correctly, not only on the MR36, but on other devices in the network. Unscheduled Automatic Power Save Delivery (U-APSD) and new Target Wait Time features in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.Self-configuring, self-maintaining, always up-to-dateWhen plugged in, the MR36 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the AP and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.Advanced analyticsDrilling down into the details of network usage provides highly granular traffic analytics. Visibility into the physical world can be enhanced with journey tracking through location analytics. Visitor numbers, dwell time, repeat visit rates, and track trends can all be easily monitored in the dashboard and deeper analysis is enabled with raw data available via simple APIs.SpecificationsCategory SpecificationsRadios • 2.4 GHz 802.11b/g/n/ax client access radio• 5 GHz 802.11a/n/ac/ax client access radio• 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio • 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support •Concurrent operation of all four radios•Supported frequency bands (country-specific restrictions apply)•Supported frequency bands (country-specific restrictions apply):◦ 2.412-2.484 GHz◦ 5.150-5.250 GHz (UNII-1)◦ 5.250-5.350 GHZ (UNII-2)◦ 5.470-5.600, 5.660-5.725 GHz (UNII-2e)◦ 5.725 -5.825 GHz (UNII-3)Antenna•Internal Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)802.11ax, 802.11ac Wave 2 and 802.11n Capabilities •DL-OFDMA**, UL-OFDMA**, TWT support**, BSS Coloring**• 2 x 2 multiple input, multiple output (MIMO) with two spatial streams•SU-MIMO, UL MU-MIMO** and DL MU-MIMO support•Maximal ratio combining (MRC) & beamforming•20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)•Up to 1024-QAM on both 2.4 GHz & 5 GHz bands•Packet aggregationPower •Power over Ethernet: 37 - 57 V (802.af compatible)•Alternative: 12 V DC input•Power consumption: 15W max (802.3af)•Power over Ethernet injector and DC adapter sold separatelyInterfaces •1x 10/100/1000 BASE-T Ethernet (RJ45)•1x DC power connector (5.5 mm x 2.5 mm, center positive)Mounting •All standard mounting hardware included•Desktop, ceiling, and wall mount capable•Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes •Bubble level on mounting cradle for accurate horizontal wall mountingPhysical Security •Two security screw options (included) (10 mm long and 2.5 mm diameter and 4.7 mm head)•Kensington lock hard point•Concealed mount plate with anti-tamper cable bayEnvironment •Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)•Humidity: 5 to 95% non-condensingPhysical Dimensions •9.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mount plate •Weight: 492 gSecurity •Integrated Layer 7 firewall with mobile device policy management•Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal•Flexible guest access with device isolation•VLAN tagging (802.1q) and tunneling with IPsec VPN•PCI compliance reporting•WEP***, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)**•EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM•TKIP and AES encryption•Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration•Cisco ISE integration for Guest access and BYOD PosturingQuality of Service •Advanced Power Save (U-APSD)•WMM Access Categories with DSCP and 802.1p support •Layer 7 application traffic identification and shapingMobility •PMK, OKC, & 802.11r for fast Layer 2 roaming •Distributed or centralized layer 3 roamingAnalytics •Embedded location analytics reporting and device tracking•Global L7 traffic analytics reporting per network, per device, & per applicationLED Indicators• 1 power/booting/firmware upgrade statusRegulatory •RoHS•For additional country-specific regulatory information, please contact Meraki salesWarranty•Lifetime hardware warranty with advanced replacement includedOrdering Information •MR36-HW: Meraki MR36 Cloud Managed 802.11ax AP•MA-PWR-30W-XX: Meraki AC Adapter for MR Series (XX = US/EU/UK/AU)•MA-INJ-4-XX: Meraki Gigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)•MA-INJ-5-XX: Meraki Multigigabit 802.3at Power over Ethernet Injector (XX = US/EU/UK/AU)•Note: Meraki access point license required.Compliance and StandardsCategory Standards ** software features can be enabled via firmware updatesIEEE Standards•802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, and 802.11u***Safety Approvals •CSA and CB 60950 & 62368•Conforms to UL 2043 (Plenum Rating)Radio Approvals •Canada: FCC Part 15C, 15E, RSS-247•Europe: EN 300 328, EN 301 893•Australia/NZ: AS/NZS 4268•Mexico: IFT, NOM-208•Taiwan: NCC LP0002•For additional country-specific regulatory information, please contact Meraki SalesEMI Approvals (Class B)•Canada: FCC Part 15B, ICES-003•Europe: EN 301 489-1-17, EN 55032, EN 55024•Australia/NZ: CISPR 22•Japan: VCCIExposure Approvals •Canada: FCC Part 2, RSS-102•Europe: EN 50385, EN 62311, EN 62479•Australia/NZ: AS/NZS 2772Context and Comparisons802.11ax, 802.11ac Wave 2 and 802.11n CapabilitiesMR36MR46MR56DL-OFDMA**, UL-OFDMA**, TWT support**,BSS coloring**DL-OFDMA**, UL-OFDMA**, TWT support**,BSS coloring**DL-OFDMA**, UL-OFDMA**, TWT support**,BSS coloring**2 x 2 multiple input, multiple output (MIMO) withtwo spatial streams 4 x 4 multiple input, multiple output (MIMO) withfour spatial streams8 x 8 multiple input, multiple output (MIMO) witheight spatial streams on 5 GHz4 x 4 multiple input, multiple output (MIMO) witheight spatial streams on 2.4 GHzMaximal ratio combining (MRC) & beamforming Maximal ratio combining (MRC) & beamforming Maximal ratio combining (MRC) & beamforming *** feature can be enabled for required networksSU-MIMO, UL MU-MIMO** and DL MU-MIMOsupport SU-MIMO, UL MU-MIMO**and DL MU-MIMOsupportSU-MIMO, UL MU-MIMO**and DL MU-MIMOsupport20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and80 MHz channels (802.11ax)20 and 40 MHz channels (802.11n); 20, 40, and80 MHz channels (802.11ac Wave 2); 20, 40 and80 MHz channels (802.11ax)20 and 40 MHz channels (802.11n); 20, 40, and80 MHz channels (802.11ac Wave 2); 20, 40 and80MHz channels (802.11ax)Up to 1024-QAM on both 2.4 GHz & 5 GHzbands Up to 1024-QAM on both 2.4 GHz & 5 GHzbandsUp to 1024-QAM on both 2.4 GHz & 5 GHzbandsPacket aggregation Packet aggregation Packet aggregation PowerMR36MR46MR56Power over Ethernet: 37 - 57 V (802.afcompliant)Power over Ethernet: 42.5 - 57 V (802.3atcompliant)Power over Ethernet: 42.5 - 57 V (802.3atcompliant)Alternative: 12 V DC input Alternative: 12 V DC input Alternative: 12 V DC input Power consumption: 15W max (802.3af)Power consumption: 22W max Power consumption: 22W maxPower over Ethernet injector and DC adaptersold separately Power over Ethernet injector and DC adaptersold separatelyPower over Ethernet injector and DC adaptersold separatelyInterfacesMR36MR46MR561x 10/100/1000 BASE-T Ethernet (RJ45)1x 10/100/1000/2.5G BASE-T Ethernet (RJ45)1x 10/100/1000/2.5G/5G BASE-T Ethernet(RJ45)1x DC power connector (5.5 mm x 2.5 mm,center positive)1x DC power connector (5.5 mm x 2.5 mm,center positive)1x DC power connector (5.5 mm x 2.5 mm,center positive)Physical DimensionsMR36MR46MR569.84” x 4.72” x 1.42” (25 cm x 12 cm x 3.6 cm), not including desk mount feet or mountplate 12.05” x 5.06” x 1.74” (30.6 cm x 12.84 cm x 4.426cm), not including desk mount feet or mount plate12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x4.47 cm), not including deskmount feet or mountplateWeight: 492 g Weight: 800 g Weight: 1 kgRF Performance Table2.4 GHzOperating Band Operating Mode Data Rate TX Power (conducted)RX Sensitivity2.4 GHz802.11b 1 Mb/s20-1002 Mb/s20-90 5.5 Mb/s20-90 11 Mb/s20-902.4 GHz802.11g 6 Mb/s19-94 9 Mb/s19-93 12 Mb/s19-91 18 Mb/s19-89 24 Mb/s16-86 36 Mb/s16-82 48 Mb/s16-78 54 Mb/s16-772.4 GHz802.11n (HT20)MCS018.5-95 MCS118.5-92 MCS218.5-90 MCS318.5-87MCS418.5-83 MCS514.5-79 MCS614.5-78 MCS714.5-762.4 GHz802.11ac (VHT20)MCS018.5-95 MCS118.5-92 MCS218.5-90 MCS318.5-87 MCS418.5-83 MCS514.5-79 MCS614.5-78 MCS714.5-77 MCS814-722.4 GHz802.11ax (HE20)MCS019-93 MCS119-90 MCS219-88 MCS319-85 MCS419-81MCS514.5-77 MCS614.5-76 MCS714.5-75 MCS814-70 MCS914-68 MCS1013.5-65 MCS1113.5-632.4 GHz802.11n (HT40)MCS017-92 MCS117-89 MCS217-87 MCS317-84 MCS417-80 MCS514.5-76 MCS614.5-75 MCS714.5-742.4 GHz802.11ac (VHT40)MCS017-91 MCS117-88 MCS217-86MCS317-83 MCS417-79 MCS514.5-75 MCS614.5-74 MCS714.5-73 MCS814-69 MCS914-692.4 GHz802.11ax (HE40)MCS018.5-90 MCS118.5-87 MCS218.5-85 MCS318.5-82 MCS418.5-78 MCS514.5-74 MCS614.5-73 MCS714.5-72 MCS814-67 MCS914-65 MCS1013.5-65MCS1113.5-635 GHzOperating Band Operating Mode Data Rate TX Power (conducted)RX Sensitivity5 GHz802.11a 6 Mb/s17.5-92 9 Mb/s17.5-91 12 Mb/s17.5-89 18 Mb/s17.5-87 24 Mb/s15-83 36 Mb/s15-80 48 Mb/s15-76 54 Mb/s15-765 GHz802.11n (HT20)MCS017.5-93 MCS117.5-90 MCS217.5-88 MCS317.5-85 MCS417.5-81 MCS513.5-77MCS613.5-76 MCS713.5-755 GHz802.11n (HT40)MCS017.5-91 MCS117.5-88 MCS217.5-86 MCS317.5-83 MCS417.5-79 MCS513.5-75 MCS613.5-74 MCS713.5-735 GHz802.11ac (VHT20)MCS017.5-94 MCS117.5-91 MCS217.5-89 MCS317.5-86 MCS417.5-82 MCS513.5-78 MCS613.5-77 MCS713.5-76MCS813.5-705 GHz802.11ac (VHT40)MCS017.5-91 MCS117.5-88 MCS217.5-86 MCS317.5-83 MCS417.5-79 MCS513.5-75 MCS613.5-74 MCS713.5-73 MCS813.5-68 MCS913.5-675 GHz802.11ac (VHT80)MCS017.5-88 MCS117.5-85 MCS217.5-83 MCS317.5-80 MCS417.5-76 MCS513.5-72 MCS613.5-71MCS713.5-70 MCS813.5-65 MCS913.5-645 GHz802.11ax (HE20)MCS017.5-93 MCS117.5-92 MCS217.5-88 MCS317.5-85 MCS417.5-81 MCS513.5-77 MCS613.5-76 MCS713.5-75 MCS813.5-70 MCS913.5-68 MCS1012-65 MCS1112-605 GHz802.11ax (HE40)MCS017-91 MCS117-88 MCS217-86MCS317-83 MCS417-79 MCS513.5-75 MCS613.5-74 MCS713.5-73 MCS813.5-68 MCS913.5-66 MCS1012-63 MCS1112-625 GHz802.11ax (HE80)MCS017-88 MCS117-85 MCS217-83 MCS317-80 MCS417-76 MCS513.5-72 MCS613.5-71 MCS713.5-70 MCS813.5-65MCS913.5-63MCS1012-60MCS1112-59 Signal Coverage Patterns5 GHz - Wireless2.4 GHz - Wireless2.4GHz - Bluetooth2.4 GHz - Scanning5 GHz - ScanningInstallation GuideFor instructions on how to install and configure MR36 access points please refer the MR36 Installation Guide。

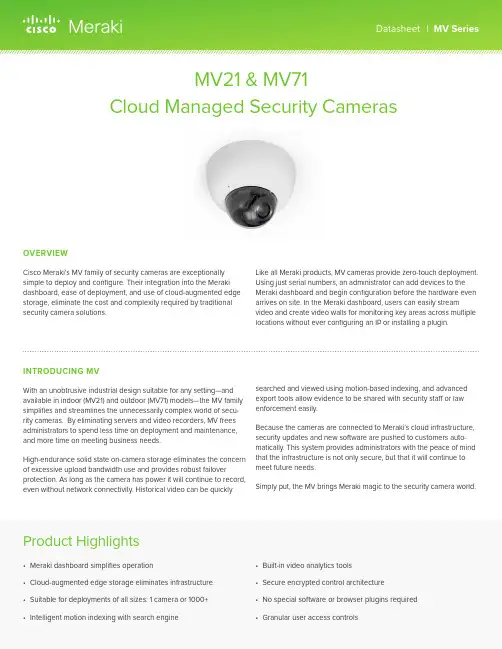

INTRODUCING MVWith an unobtrusive industrial design suitable for any setting—and available in indoor (MV21) and outdoor (MV71) models—the MV family simplifies and streamlines the unnecessarily complex world of secu-rity cameras. By eliminating servers and video recorders, MV frees administrators to spend less time on deployment and maintenance, and more time on meeting business needs.High-endurance solid state on-camera storage eliminates the concern of excessive upload bandwidth use and provides robust failoverprotection. As long as the camera has power it will continue to record, even without network connectivity. Historical video can be quicklyOVERVIEWCisco Meraki’s MV family of security cameras are exceptionally simple to deploy and configure. Their integration into the Meraki dashboard, ease of deployment, and use of cloud-augmented edge storage, eliminate the cost and complexity required by traditional security camera solutions.Like all Meraki products, MV cameras provide zero-touch deployment. Using just serial numbers, an administrator can add devices to the Meraki dashboard and begin configuration before the hardware even arrives on site. In the Meraki dashboard, users can easily streamvideo and create video walls for monitoring key areas across multiple locations without ever configuring an IP or installing a plugin.searched and viewed using motion-based indexing, and advanced export tools allow evidence to be shared with security staff or law enforcement easily.Because the cameras are connected to Meraki’s cloud infrastructure, security updates and new software are pushed to customers auto-matically. This system provides administrators with the peace of mind that the infrastructure is not only secure, but that it will continue to meet future needs.Simply put, the MV brings Meraki magic to the security camera world.Product Highlights• Meraki dashboard simplifies operation• Cloud-augmented edge storage eliminates infrastructure • Suitable for deployments of all sizes: 1 camera or 1000+• Intelligent motion indexing with search engine• Built-in video analytics tools• Secure encrypted control architecture• No special software or browser plugins required • Granular user access controlsMV21 & MV71Cloud Managed Security CamerasDatasheet | MV SeriesCUTTING EDGE ARCHITECTUREMeraki's expertise in distributed computing has come to the security camera world. With cloud-augmented edge storage, MV cameras provide ground breaking ease of deployment, configuration, and operation. Completely eliminating the Network Video Recorder (NVR) not only reduces equipment CAPEX, but the simplified architecture also decreases OPEX costs. Each MV camera comes with integrated, ultra reliable, industrial-grade storage. This cutting edge technology allows the system to efficiently scale to any size because the storage expands with the addition of each camera. Plus, administrators can rest easyknowing that even if the network connection cuts out, the cameras will continue to record footage.SCENE BEING RECORDEDON-DEVICE STORAGELOCAL VIDEO ACCESS MERAKIREMOTE VIDEOACCESSOPTIMIZED RETENTIONMV takes a unique approach to handling motion data by analyzing video on the camera itself, but indexing motion in the cloud. This hybrid motion-based retention strategy plus scheduled recording give users the ability to define the video retention method that works best for every deployment.The motion-based retention tool allows users to pick the video bit rate and frame rate to find the perfect balance betweenstorage length and image quality. All cameras retain continuous footage as a safety net for the last 72 hours before intelligently trimming stored video that contains no motion, adding one more layer of security.Determine when cameras are recording, and when they’re not, with scheduled recording. Create schedule templates for groups of cameras and store only what’s needed, nothing more. Turn off recording altogether and only view live footage for selective privacy.Best of all, the dashboard provides a real-time retention estimate for each camera, removing the guesswork.10:00:3010:00:2010:00:25EASY TO ACCESS, EASY TO CONTROLThere is often a need to allow different users access but with tailored controls appropriate for their particular roles. For example, a receptionist needing to see who is at the front door probably does not need full camera configuration privileges.The Meraki dashboard has a set of granular controls for defining what a user can or cannot do. Prevent security staff from changing network settings, limit views to only selected cameras, or restrict the export of video: you decide what is possible.With the Meraki cloud authentication architecture, these controls scale for any organization and support Security Assertion Markup Language (SAML) integration.CONFIGURE VIEW-ONLYISOLATE EVENTS, INTELLIGENTLYMeraki MV cameras use intelligent motion search to quickly find important segments of video amongst hours of recordings. Optimized to eliminate noise and false positives, this allows users to retrospectively zero-in on relevant events with minimal effort.MV's motion indexing offers an intuitive search interface. Select the elements of the scene that are of interest and dashboard will retrieve all of the activity that occurred in that area. Laptop go missing? Drag the mouse over where it was last seen and quickly find out when it happened and who was responsible.8:009:00ANALYTICS, BUILT RIGHT INMV's built-in analytics take the average deployment far beyond just security. Make the most of an MVcamera by utilizing it as a sensor to optimize business performance, enhance public safety, or streamline operational objectives.Use motion heat maps to analyze customer behavior patterns or identify where students are congregating during class breaks. Hourly or daily levels ofgranularity allow users to quickly tailor the tool to specific use cases.All of MV's video analytics tools are built right into the dashboard for quick access. Plus, the standard MV license covers all of these tools, with no additionallicensing or costs required.SIMPLY CLOUD-MANAGEDMeraki's innovative GUI-based dashboardmanagement tool has revolutionized networks aroundthe world, and brings the same benefits to networkedvideo surveillance. Zero-touch configuration, remotetroubleshooting, and the ability to manage distributedsites through a single pane of glass eliminate manyof the headaches security administrators have dealtwith for decades. Best of all, dashboard functionalityis built into every Meraki product, meaning additionalvideo management software (VMS) is now a thing ofthe past.Additionally, features like the powerful drag-and-drop video wall help to streamline remote devicemanagement and monitoring — whether cameras aredeployed at one site, or across the globe.SECURE AND ALWAYS UP-TO-DATECentralized cloud management offers one of the mostsecure platforms available for camera operation. Allaccess to the camera is encrypted with a public keyinfrastructure (PKI) that includes individual cameracertificates. Integrated two-factor authenticationprovides strong access controls. Local video is alsoencrypted by default and adds a final layer of securitythat can't be turned off.All software updates are managed automaticallyfor the delivery of new features and to enable rapidsecurity updates. Scheduled maintenance windowsensure the MV family continues to address users'needs with the delivery of new features as part of theall-inclusive licensed service.Camera SpecificationsCamera1/3.2” 5MP (2560x1920) progressive CMOS image sensor128GB high endurance solid state storageFull disk encryption3 - 10mm vari-focal lens with variable aperture f/1.3 - f/2.5Variable field of view:28° - 82° (Horizontal)21° - 61° (Vertical)37° - 107° (Diagonal)Automatic iris control with P-iris for optimal image quality1/5 sec. to 1/32,000 sec. shutter speed*******************************(color)*************(B&W)S/N Ratio exceeding 62dB - Dynamic Range 69dBHardware based light meter for smart scene detectionBuilt-in IR illuminators, effective up to 30 meters (98 feet)Integrated heating elements for low temperature outdoor operation (MV71 only)Video720p HD video recording (1280x720) with H.264 encodingCloud augmented edge storage (video at the edge, metadata in the cloud)Up to 20 days of video storage per camera*Direct live streaming with no client software (native browser playback)**Stream video anywhere with autotmatic cloud proxyNetworking1x 10/100 Base-T Ethernet (RJ45)Compatible with Meraki wireless mesh backhaul (separate WLAN AP required) DSCP traffic markingFeaturesCloud managed with complete integration into the Meraki dashboardPlug and play deployment with self-configurationRemote adjustment of focus, zoom, and apertureDynamic day-to-night transition with IR illuminationNoise optimized motion indexing engine with historical searchShared video wall with individual layouts supporting multiple camerasSelective export capability with cloud proxyHighly granular view, review, and export user permissions with SAML integration Motion heat maps for relative hourly or day-by-day motion overviewMotion alertsPowerPower consumption (MV21) 10.94W maximum via 802.3af PoE Power consumption (MV71) 21.95W maximum via 802.3at PoE+EnvironmentStarting temperature (MV21): -10°C - 40°C (14°F - 104°F)Starting temperature (MV71): -40°C - 40°C (-40°F - 104°F)Working temperature (MV21): -20°C - 40°C (-4°F - 104°F)Working temperature (MV71): -50°C - 40°C (-58°F - 104°F)In the boxQuick start & installation guideMV camera hardwareWall mounting kit, drop ceiling T-rail mounting hardwarePhysical characterisitcsDimensions (MV21) 166mm x 116.5mm (diameter x height)Dimensions (MV71) 173.3mm x 115mm (diameter x height)Weather-proof IP66-rated housing (MV71 only)Vandal-proof IK10-rated housing (MV71 only)Lens adjustment range:65° Tilt350° Rotation350° PanWeight (MV21) 1.028kg (including mounting plate)Weight (MV71) 1.482kg (including mounting plate)Female RJ45 Ethernet connectorSupports Ethernet cable diameters between 5-8mm in diameterStatus LEDReset buttonWarrantyWarranty (MV21) 3 year hardware warranty with advanced replacementWarranty (MV71) 3 year hardware warranty with advanced replacementOrdering InformationMV21-HW: Meraki MV21 Cloud Managed Indoor CameraMV71-HW: Meraki MV71 Cloud Managed Outdoor CameraLIC-MV-XYR: Meraki MV Enterprise License (X = 1, 3, 5, 7, 10 years)MA-INJ-4-XX: Meraki 802.3at Power over Ethernet injector (XX = US, EU, UK, or AU) Note: Each Meraki camera requires a license to operate* Storage duration dependent on encoding settings.** Browser support for H.264 decoding required.Mounting Accessories Specifications Meraki Wall Mount ArmWall mount for attaching camera perpendicular to mounting surfaceIncludes pendant capSupported Models: MV21, MV71Dimensions (Wall Arm) 140mm x 244mm x 225.4mmDimensions (Pendant Cap) 179.9mm x 49.9mm (Diameter x Height)Combined Weight 1.64kgMeraki Pole MountPole mount for poles with diameter between 40mm - 145mm (1.57in - 5.71in)Can be combined with MA-MNT-MV-1: Meraki Wall Mount ArmSupported Models: MV71Dimensions 156.7mm x 240mm x 68.9mmWeight 1.106kgMeraki L-Shape Wall Mount BracketCompact wall mount for attaching camera perpendicular to mounting surfaceSupported Models: MV21, MV71Dimensions 206mm x 182mm x 110mmWeight 0.917kgOrdering InformationMA-MNT-MV-1: Meraki Wall Mount Arm for MV21 and MV71MA-MNT-MV-2: Meraki Pole Mount for MV71MA-MNT-MV-3: Meraki L-Shape Wall Mount Bracket for MV21 and MV71。

MR46 DatasheetHigh-Performance 802.11ax WirelessThe Cisco Meraki MR46 is a cloud-managed 4x4:4802.11ax access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels, the MR46 offers high throughput, enterprise-grade security, and simple management.The MR46 provides a maximum of 3.5Gbps* aggregate frame rate with concurrent 2.4 GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/ WIPS, with automated RF optimization.A fourth integrated radio delivers Bluetooth scanning and beaconing.With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR46 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice and high-definition video.MR46 and Meraki Cloud ManagementManagement of the MR46 is performed through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming training or costly certifications. Because the MR46 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff.24x7 monitoring via the Meraki cloud delivers real-time alerts if a network encounters problems. Remote diagnostic tools enable immediate troubleshooting overthe web so that distributed networks can be managed with a minimum of hassle.The MR46’s firmware is automatically kept up-to-date via the cloud. New features, bug fixes, and enhancements are delivered seamlessly over the web. This means no manual software updates to download or missing security patches to worry about.Product Highlights•4x4:4MU-MIMO 802.11ax• 3.5* Gbps dual-radio aggregate frame rate•24x7 real-time WIDS/WIPS and spectrum analytics via dedicated third radio•Integrated Bluetooth Low Energy beacon•Integrated scanning radio•Enhanced transmit power and receive sensitivity •Integrated enterprise security and guest access •Application-aware traffic shaping•Optimized for voice and video•Self-configuring, plug-and-play deployment•Sleek design blends into office environments•Full-time Wi-Fi location tracking via dedicated third radioFeaturesDual–radio aggregate frame rate of up to 3.5Gbps*The 5 GHz 4x4:4radio and the 2.4 GHz 4x4:4radio offer a combined dual-radio aggregate frame rate of 3.5Gbps*, with up to 2,402Mbps in the 5 GHz band and 1,147Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR46 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients from each AP.Multi-user multiple input multiple output (MU-MIMO)With support for features of 802.11ax, the MR46 offers MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.Dedicated third radio delivers 24x7 wireless security and RF analyticsThe MR46’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data. A dedicated third radio means that all functions occur in real time without any impact to client traffic or AP throughput.Bluetooth Low Energy beacon and scanning radioAn integrated fourth Bluetooth® radio provides seamless deployment of Bluetooth Low Energy beacon functionality and effortless visibility of Bluetooth®devices. The MR46 enables the next generation of location-aware applications while future-proofing deployments, ensuring it’s ready for new customer engagement strategies.Automatic cloud-based RF optimizationThe MR46’s sophisticated and automated RF optimization means there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated third radio is continuously fed back to the Meraki cloud. This data is then used to automatically tune the channel selection, transmit power, and client connection settings for optimal performance under even the most challenging RF conditions.Integrated enterprise security and guest access* Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE 802.11ax operation.The MR46 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests. Advanced security features, such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration, provide wired-like security while still being easy to configure. One-click guest isolation provides secure, internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.Enterprise mobility management (EMM) and mobile device management (MDM) integrationMeraki Systems Manager natively integrates with the MR46 to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic-shaping policies to client posture.Application-aware traffic shapingThe MR46 includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission-critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.Voice and video optimizationsIndustry-standard QoS features are built-in and easy to configure. Wireless multimedia (WMM) access categories, 802.1p, and DSCP standards supportand ensure important applications get prioritized correctly, not only on the MR46, but on other devices in the network. Unscheduled automatic power save delivery (U-APSD) and new target wait time features in 802.11ax clients ensure minimal battery drain on wireless VoIP phones.Self-configuring, self-maintaining, always up-to-dateWhen plugged in, the MR46 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new firmware is required, this is retrieved by the AP and updated automatically. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.Advanced analyticsDrilling down into the details of network usage provides highly granular traffic analytics. Visibility into the physical world can be enhanced with journey tracking through location analytics. Visitor numbers, dwell time, repeat visit rates, and track trends can all be easily monitored in the dashboard and deeper analysis is enabled with raw data available via simple APIs.SpecificationsCategory SpecificationsRadios • 2.4 GHz 802.11b/g/n/ax client access radio• 5 GHz 802.11a/n/ac/ax client access radio• 2.4 GHz and5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio • 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support •Concurrent operation of all four radios•Supported frequency bands (country-specific restrictions apply)•Supported frequency bands (country-specific restrictions apply):◦ 2.412-2.484 GHz◦ 5.150-5.250 GHz (UNII-1)◦ 5.250-5.350 GHZ (UNII-2)◦ 5.470-5.600, 5.660-5.725 GHz (UNII-2e)◦ 5.725 -5.825 GHz (UNII-3)Antenna•Internal antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz) 802.11ax, 802.11ac Wave 2 and 802.11nCapabilities•DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring**• 4 x 4multiple input, multiple output (MIMO) with four spatial streams•SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support•Maximal ratio combining (MRC) & beamforming•20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)•Up to 1024-QAM on both 2.4 GHz and5 GHz bands•Packet aggregationPower •Power over Ethernet: 42.5- 57 V (802.3at compliant)•Alternative: 12 V DC input•Power consumption: 30W max (802.3at required)•Power over Ethernet injector and DC adapter sold separatelyInterfaces •1x 100/1,000/2.5G BASE-T Ethernet (RJ45)•1x DC power connector (5.5 mm x 2.5 mm, center positive)Mounting •All standard mounting hardware included•Desktop, ceiling, and wall mount capable•Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes •Bubble level on mounting cradle for accurate horizontal wall mountingPhysical Security •Two security screw options (included) (13.5mm long, 2.5 mm diameter, 5mm head)•Kensington lock hard point•Concealed mount plate with anti-tamper cable bayEnvironment •Operating altitude:Up to40,000 feet (12,192 meters)•Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)•Humidity: 5% to 95% non-condensingReliability•Mean time between failure (MTBF): 1,406,652 hrs at +25°C operating temperaturePhysical Dimensions •12.05” x 5.06” x 1.74” (30.6cm x 12.84 cm x 4.43cm), not including desk mount feet or mount plate •Weight: 28.22 oz (800g)** Feature is automatically enabled via firmware update to MR 27+Note:Actual power consumption may vary depending on the AP usage.Security •Integrated layer 7 firewall with mobile device policy management•Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal •Flexible guest access with device isolation•VLAN tagging (802.1q) and tunneling with IPsec VPN•PCI compliance reporting•WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)***•EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM•TKIP and AES encryption•Enterprise mobility management (EMM) and Mobile device management (MDM) integration •Cisco ISE integration for guest access and BYOD posturingQuality of Service •Advanced power save (U-APSD)•WMM access categories with DSCP and 802.1p support •Layer 7 application traffic identification and shapingMobility •PMK, OKC, and802.11r for fast layer 2 roaming •Distributed or centralized layer 3 roamingAnalytics •Embedded location analytics reporting and device tracking•Global layer 7 traffic analytics reporting per network, per device, and per applicationLED Indicators• 1 power/booting/firmware upgrade statusRegulatory •RoHS•For additional country-specific regulatory information, please contact Meraki salesWarranty•Lifetime hardware warranty with advanced replacement includedOrdering Information •MR46-HW: Meraki MR46cloud managed 802.11ax AP•MA-PWR-30W-XX: Meraki AC adapter for MR series (XX = US/EU/UK/AU)•MA-INJ-4-XX: Meraki gigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU)•MA-INJ-5-XX: Meraki multigigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU)•Note: Meraki access point license required*Feature can be enabled by contacting support**Feature supported on firmware MR 27+ and can be made available on MR 26; seethe WPA3article for more information*** Feature will be made available via a future software updateCompliance and Standards*Feature can be enabled by contacting support; see the Hotspot 2.0article for more informationContext and Comparisons802.11ax, 802.11ac Wave 2, and 802.11n CapabilitiesMR36MR44MR46MR56DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWT DL-OFDMA, UL-OFDMA, TWTsupport, BSS coloring support, BSS coloring support, BSS coloring support, BSS coloring2 x 2 multiple input, multiple output (MIMO) with two spatial streams 2.4 GHz: 2 x 2 multiple input,multiple output (MIMO) with twospatial streams5 GHz: 4 x 4 multiple input, multipleoutput (MIMO) with four spatialstreams4 x 4 multiple input, multiple output(MIMO) with four spatial streams8 x 8 multiple input, multiple output(MIMO) with eight spatial streamson 5 GHz4 x 4 multiple input, multiple output(MIMO) with four spatial streams on2.4 GHzMaximal ratio combining (MRC) and beamforming Maximal ratio combining (MRC)and beamformingMaximal ratio combining (MRC)and beamformingMaximal ratio combining (MRC)and beamformingSU-MIMO, UL MU-MIMO,and DL MU-MIMO support SU-MIMO, UL MU-MIMO,and DLMU-MIMO supportSU-MIMO, UL MU-MIMO,and DLMU-MIMO supportSU-MIMO, UL MU-MIMO,and DLMU-MIMO support20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac wave 2); 20, 40 and 80 MHz channels (802.11ax)20 and 40 MHz channels (802.11n);20, 40, and 80 MHz channels(802.11ac wave 2); 20, 40 and 80MHz channels (802.11ax)20 and 40 MHz channels (802.11n);20, 40, and 80 MHz channels(802.11ac wave 2); 20, 40 and 80MHz channels (802.11ax)20 and 40 MHz channels(802.11n); 20, 40, and 80 MHzchannels (802.11ac wave 2); 20, 40and 80MHz channels (802.11ax)Up to 1024-QAM on both 2.4 GHz and 5 GHz bands Up to 1024-QAM on both 2.4 GHzand 5 GHz bandsUp to 1024-QAM on both 2.4 GHzand 5 GHz bandsUp to 1024-QAM on both 2.4 GHzand 5 GHz bandsPacket aggregation Packet aggregation Packet aggregation Packet aggregation PowerMR36MR44MR46MR56Power over Ethernet: 37 - 57 V (802.af compliant)Power over Ethernet: 42.5 - 57 V (802.3at)or37 - 57 V (802.3af)- low power mode **Power over Ethernet: 42.5 - 57V (802.3at compliant)Power over Ethernet: 42.5 - 57V (802.3at compliant)Alternative: 12 V DC input Alternative: 12 V DC input Alternative: 12 V DC input Alternative: 12 V DC inputPower consumption: 15W max (802.3af)Power consumption: 30W max (802.3at)or15W max (802.3af) - low power mode **Power consumption: 30W max(802.3at required)Power consumption: 30W max(802.3at required)Power over Ethernet injector and DC adapter sold separately Power over Ethernet injector and DC adaptersold separatelyPower over Ethernet injectorand DC adapter sold separatelyPower over Ethernet injectorand DC adapter sold separatelyInterfacesMR36MR44MR46MR561x 10/100/1000 BASE-T Ethernet (RJ45)1x 100/1000/2.5G BASE-T Ethernet (RJ45)1x 100/1000/2.5G BASE-T Ethernet (RJ45)1x 100/1000/2.5G/5G BASE-T Ethernet (RJ45)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)1x DC power connector (5.5 mm x 2.5 mm, center positive)Physical DimensionsMR36MR44MR46MR569.84” x 4.72” x 1.42” (25 cm x 12cm x 3.6 cm), not including desk mount feet or mount plate 12.05" × 5.06" × 1.74" (30.6 cm ×12.84 cm × 4.43 cm), not including desk mount feet or mount plate 12.05” x 5.06” x 1.74” (30.6cm x 12.84 cm x 4.43cm), not including desk mount feet or mount plate 12.83” x 5.54” x 1.76” (32.6 cm x 14.079 cm x 4.47 cm), not including desk mount feet or mount plateWeight: 17.35 oz (492 g)Weight: 26.07 oz (739 g)Weight: 28.22 oz (800 g)Weight: 35.27 oz (1 kg)RF Performance Table2.4 GHzOperating Band Operating Mode Data Rate TX Power (conducted)2.4 GHz 802.11b 1 Mb/s 26.02 Mb/s 26.0Note:Actual power consumption may vary depending on the AP usage.** Feature available via firmware update to MR 27.6+. Please see our Low Power Mode article for more information.5.5 Mb/s26.011 Mb/s26.0 2.4 GHz802.11g 6 Mb/s26.09 Mb/s26.012 Mb/s24.018 Mb/s24.024 Mb/s23.036 Mb/s23.048 Mb/s22.054 Mb/s22.0 2.4 GHz802.11n (HT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS721.0 2.4 GHz802.11ac (VHT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS721.0MCS820.0 2.4 GHz802.11ax (HE20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS721.0MCS820.0MCS920.0MCS1019.0MCS1119.0 2.4 GHz802.11ac (VHT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS820.5MCS920.0 2.4 GHz802.11ax (HE40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS721.5MCS820.5MCS920.0MCS1018.5MCS1118.5 5 GHzOperating Band Operating Mode Data Rate TX Power 5 GHz802.11a 6 Mb/s26.09 Mb/s26.012 Mb/s24.018 Mb/s24.024 Mb/s23.036 Mb/s23.048 Mb/s22.054 Mb/s22.05 GHz802.11n (HT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS523.0MCS622.0MCS722.0 5 GHz802.11n (HT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0 5 GHz802.11ac (VHT20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS821.0 5 GHz802.11ac (VHT40)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS820.5MCS920.0 5 GHz802.11ac (VHT80)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS819.0MCS919.0 5 GHz802.11ax (HE20)MCS026.0MCS126.0MCS224.0MCS324.0MCS424.0MCS523.0MCS622.0MCS722.0MCS821.0MCS921.0MCS1019.0MCS1119.0 5 GHz802.11ax (HE40)MCS024.0MCS124.0MCS224.0MCS324.0MCS523.0MCS622.0MCS721.5MCS820.5MCS920.0MCS1018.5MCS1118.5 5 GHz802.11ax (HE80)MCS024.0MCS124.0MCS224.0MCS324.0MCS424.0MCS522.0MCS622.0MCS720.0MCS819.0MCS919.0MCS1017.0MCS1117.0 Signal Coverage Patterns5 GHz - Wireless2.4 GHz - Wireless2.4 GHz - Bluetooth®2.4 GHz - Scanning5 GHz - ScanningInstallation GuideFor instructions on how to install and configure MR46 access points,please refer to the MR46 Installation Guide.。

General purpose industrial / outdoor 802.11ac Wave 2 wirelessThe Cisco Meraki MR74 is a four-radio, cloud-managed 2x2 MIMO 802.11ac Wave 2access point. Designed for general purpose, next-generation deployments in harshoutdoor locations and industrial indoor conditions, the MR74 offers performance,enterprise-grade security, and intuitive management.The MR74 delivers a maximum 1.3 Gbps* aggregate frame rate with concurrent 2.4GHz and 5 GHz radios. A dedicated third radio provides real-time WIDS/WIPS withautomated RF optimization. A fourth radio delivers seamless Bluetooth Low Energy(BLE) scanning and Beaconing.The combination of cloud management, 802.11ac, full-time RF environmentscanning, and an integrated Bluetooth Low Energy radio delivers the highthroughput, reliability, and flexibility required by the most demanding businessapplications like voice and high-definition streaming video, even in the most harshoutdoor environments.MR74 and Meraki Cloud Management: A Powerful CombinationThe MR74 is managed through the Meraki cloud, an intuitive browser-basedinterface that enables rapid deployment across multiple sites without the need fortime-consuming training or costly certifications. Since the MR74 is self-configuringand managed over the web, it can be deployed at a remote location in a matter ofminutes, even without on-site IT staff.24x7 monitoring via the Meraki cloud delivers real-time alerts if the networkencounters problems. Remote diagnostics tools enable immediate troubleshootingso that distributed networks can be managed with a minimum of hassle.The MR74’s firmware is always kept up to date from the cloud. New features, bugfixes, and enhancements are delivered seamlessly over the web, meaning nomanual software updates to download or missing security patches to worry about. Product Highlights• Ideal for outdoor and industrial indoor environments• 2x2:2 802.11ac, 1.3 Gbps aggregate dual-band data rate• 24x7 real-time WIPS/WIDS and spectrum analytics via dedicated third radio• Integrated Bluetooth Low Energy (BLE) Beaconing and scanning radio • Forms point-to-point links with optional sector antennas • Self-healing, zero-configuration mesh• Integrated enterprise security and guest access• Application-aware traffic shaping• Self-configuring, plug-and-play deploymentMR74Dual-band 2x2 MIMO 802.11ac Wave 2 access point with separateradios dedicated to security, RF Management, and Bluetooth*Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE Std 802.11ac-compliant operation.FeaturesDual-radio aggregate data rate of up to 1.3 Gbps*An 867 Gbps 5 GHz 2x2:2 802.11ac radio and a 400 Mbps 2.4 GHz radio offer a combined aggregate dual-band throughput of 1.3 Gbps. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR74 to support a higher client density than typical enterprise-class outdoor access points, resulting in fewer required APs for a given deployment. Band steering further enhances overall throughput, moving 5 GHz-capable clients to the 5 GHz radio and maximizing capacity in the 2.4 GHz range for older 802.11b/g clients.Rugged industrial designThe MR74 is designed and tested for salt spray, vibration, extreme thermal conditions, shock and dust and is IP67-rated, making it ideal for extreme environments. Despite its rugged design, MR74 has a low profile and is easy to deploy.Multi User Multiple Input Multiple Output (MU-MIMO)The MR74 offers MU-MIMO (an 802.11ac Wave 2 standard) for efficient transmission to multiple clients. Especially suited for environments with numerous mobile devices, MU-MIMO enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience. Bluetooth Low Energy Beaconing and scanningAn integrated fourth radio for Bluetooth Low Energy (BLE) provides seamless deployment of BLE Beaconing functionality and effortless visibility of BLE client devices within range of the network. The MR74 enables the next generation of location-aware applications while future-proofing your deployment for new user engagement strategies.24x7 wireless security and RF analyticsThe MR74’s dedicated dual-band scanning and security radio continually assesses the environment, characterizing RF interference and automatically containing wireless threats like rogue access points. There’s no need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput. Integrated enterprise security and guest accessThe MR74 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors.Application-aware traffic shapingThe MR74 includes an integrated layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming. Importantly, controls can be implemented per network, per SSID, per user group, or per individual user. Advanced AnalyticsDrill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world: View visitor numbers, dwell times, repeat visit rates, and compare trends. Fully customize your analysis with simple APIs. High performance meshThe MR74’s advanced mesh technologies, like multi-channel routing protocols and multiple gateway support, make it possible to cover hard-to-wire areas and improve network resilience. In the event of a switch or cable failure, the MR74 will automatically revert to mesh mode.Self-configuring, self-optimizing, self-healingWhen plugged in, the MR74 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. If new rmware is required, it is retreived by the AP and updated automatically. This ensures the network is maintained with bug fixes, security updates, and new features managed for you.Recommended Use CasesOutdoor coverage for corporate campuses, educational institutions, metro Wi-Fi, and parks• Weather-resistant Wi-Fi delivery in open spaces• Monetizeable hotspots with built-in splash pages Indoor coverage for industrial areas (e.g.,warehouses, manufacturing facilities)• Reliable coverage for scanner guns,security cameras, and POS devices• High speed-access for iPads, tabletsand laptopsZero-touch point-to-point links• Build a long-distance bridge betweentwo networks• Two MR74s can establish a long rangelink using high-gain antennas*Refers to maximum over-the-air data frame rate capability of the radio chipset, and may exceed data rates allowed by IEEE Std 802.11ac-compliant operation.MR74 Tx / Rx Tables 2.4 GHzMR74 Tx / Rx Tables5 GHzSpecificationsRadios2.4 GHz 802.11b/g/n client access radio5 GHz 802.11a/n/ac client access radio2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operations of all four radiosSupported frequency bands (country-specific restrictions apply):2.412-2.484 GHz5.150-5.250 GHz (UNII-1)5.250-5.350 GHZ (UNII-2)5.470-5.600, 5.660-5.725 GHz (UNII-2e)5.725 -5.825 GHz (UNII-3)802.11ac and 802.11n Capabilities2 x 2 multiple input, multiple output (MIMO) with two spatial streamsSU-MIMO and MU-MIMO supportMaximal ratio combining (MRC) & Beamforming20 and 40 MHz channels (2.4Ghz), 20, 40, and 80 MHz channels (5Ghz)Up to 256 QAM on both 2.4 GHz and 5 GHz bandsPacket aggregationPowerPower over Ethernet: 37 - 57 V (802.3af compatible)Power consumption: 11 W max (802.3af)Power over Ethernet injector sold separatelyMountingMounts to walls and vertical poles.Mounting hardware includedPhysical SecuritySecurity screw includedEnvironmentOperating temperature: -40 °F to 131 °F (-40 °C to 55 °C)Humidity: 5 to 95% non-condensingIP67 environmental ratingPhysical Dimensions10” x 6.2” x 2.6” (256 mm x 158 mm x 65 mm)Weight: 2.4 lbs. (1.09 kg)Interfaces1x 100/1000Base-T Ethernet (RJ45)Four external N-type female antenna connectors SecurityIIntegrated layer 7 firewall with mobile device policy managementReal-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolationVLAN tagging (802.1Q) and tunneling with IPSec VPNPCI compliance reportingWEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1XEAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIMTKIP and AES encryptionEnterprise Mobility Management (EMM) & Mobile Device Management (MDM) integra-tion)Quality of ServiceAdvanced Power Save (U-APSD)WMM Access Categories with DSCP and 802.1p supportLayer 7 application traffic identification and shapingMobilityPMK, OKC, and 802.11r for fast Layer 2 roamingDistributed or centralized layer 3 roamingLED Indicators1 power/booting/firmware upgrade statusRegulatoryRoHSFor additional country-specific regulatory information, please contact Meraki salesWarranty1 year hardware warranty with advanced replacement includedOrdering InformationMR74-HW Meraki MR74 Cloud Managed 802.11ac APMA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU) MA-ANT-20 Meraki Dual-Band Omni AntennasMA-ANT-21 Meraki 5 GHz Sector AntennaMA-ANT-23 Meraki 2.4 GHz Sector AntennaMA-ANT-27 Meraki Dual-Band Sector AntennaMA-ANT-25 Meraki Dual-Band Patch AntennaNote: Meraki Enterprise license required.。

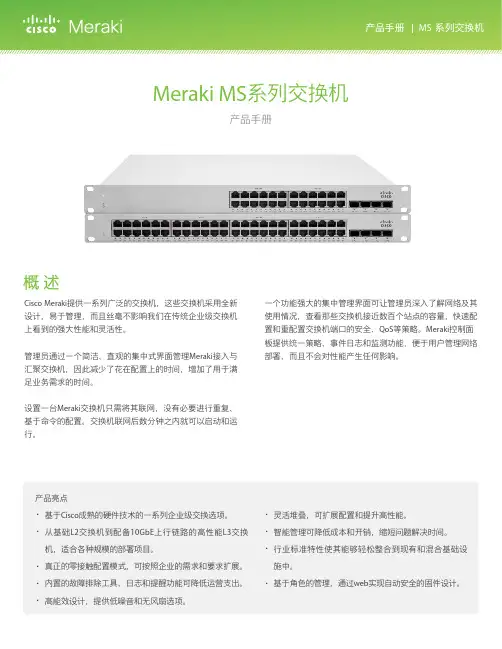

Meraki MS Series SwitchesCisco Meraki offers a broad range of switches, built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in traditional enterprise-class switches.Meraki access & aggregation switches are all managed through an elegant, intuitive cloud interface, freeing administrators to spend less time on configuration and more time on meeting business needs.To set up a Meraki switch, just plug it in; there’s no need for repetitive, command-based configuration, and switches can be up and running within minutes of connecting them to the network. A powerful centralized management interface gives administrators deep visibility into the network and how it is used:• Receive automatic email alerts for power loss, downtime, excessive Layer 1 errors, or configuration changes• Utilize remote diagnostic tools such as packet capture to help isolate and troubleshoot network issues• Stay protected with firmware upgrades andenhancements from the Meraki cloudThe Meraki dashboard provides unified policies, event logs, and monitoring, making it easy to manage network deployments without sacrificing functionality.OverviewFAMILY DATASHEET PRODUCT FAMILY HIGHLIGHTS• Basic L2 to high-performance L3 switches with 1G/10G/40G uplinks, suitable for deployments of all sizes• Range of enterprise switching options built on proven Cisco hardware technologies• Integrated troubleshooting tools, logging, and alerting reduce operational costs• True zero-touch configuration model that scales with organization needs and requirements • Cloud management reduces cost, overhead and time to resolution• Industry-standard features allow for simple integration into existing and mixed infrastructures• Role-based administration and automatic, secure firmware updates delivered via the web• Energy efficient design with low acoustics and fanless optionsInside the Meraki MSMERAKI MS350-48FP SHOWN, VARIES BY MODELVariable Speed FansStacking connectors High Reliability / MTBFExtended Life Components802.3af/802.3at PoE/PoE+Enhanced CPU / Memory Meraki Cloud Management Built-in 4 × 10 GbE SFP+ Uplink Ports for Uplink ConnectivityENTERPRISE-CLASS HARDWAREMeraki switches feature high-end hardware and an exceptional feature set, including:• 1G, 10G and 40G uplink ports for high-speed connectivity to aggregation layer switches or other upstream devices• Multigigabit ports (MS350-24X and MS355 Series) provide up to 10Gbps on a single Ethernet cable, supporting the latest WiFi performance capabilities• Wire-speed, non-blocking switch fabric (up to 800 Gbps) and 6 dedicated QoS queues for high-performance, converged voice, video, and data deployments• Power efficient, quiet acoustic designs, and shallow rack depth options, enabling flexible deployment in wiring closets as well as offices and classrooms• Fanless design on select models• Power over Ethernet and PoE+, up to 30W per port• Up to 740 watt PoE budget with PoE+ support for powering APs, cameras, and other PoE enabled devices (124W for 120-8 series), with UPoE available on the MS350-24X and MS355 series • Lifetime hardware warranty and advanced replacement at no additional cost• Field-replaceable, hot-swappable power supplies and fans on select models. RPS option for mission-critical applicationsMeraki switches include all of the traditional Ethernet features found on the highest end products, including:• Quality-of-Service (QoS) to prioritize mission critical traffic such as voice and video• IEEE 802.1X support for port based network access control • MAC-based RADIUS auth and MAC whitelisting • Voice VLAN support for simplified VoIP deployments• Port Mirroring support for monitoring network traffic at line rate • DHCP snooping to prevent users from adding unauthorized DHCP servers on the network• IGMP Snooping to optimize network performance with multicast traffic• Link Aggregation Control Protocol (LACP) for high-capacity trunking, stacking, and increased availability• Rapid spanning tree, BPDU guard, root guard, UDLD, and other safeguards to help prevent misconfigurations and reduce convergence time• Per port VLAN configuration• Multiple administrative roles with sophisticated security policy management• High-performance layer 3 routing capabilities on select modelsPOWERFUL FEATURE SET FOR DEPLOYMENTS OF ALL TYPESSeries MS120-8MS120MS210MS225Deployment type Compact Small branch & office Branch &Small campus Branch & Small campusInterfaces8 x 1G RJ4524 / 48 x 1G RJ4524 / 48 x 1G RJ45 ports24 / 48 x 1G RJ45 ports Uplinks 2 x 1G SFP 4 x 1G SFP 4 x 1G SFP ports 4 x 10G SFP+ portsPoE capabilities67W (LP model)124W (FP model)370W (P, LP models)740W (FP model)370W (P, LP models)740W (FP models)370W (P, LP models)740W (FP models)Power configuration External PSU (non-PoE, LP model)Internal PSU (FP Model)Internal InternalOptional RPSInternalOptional RPSStacking capabilities Virtual only Virtual only Stacks with MS22580 Gbps physical +virtualStacks with MS21080 Gbps physical +virtualRouting capabilities DHCP Relay DHCP Relay Static onlyDHCP RelayStatic onlyDHCP RelayModels MS120-8-HWMS120-8LP-HWMS120-8FP-HW MS120-24-HWMS120-24P-HWMS120-48-HWMS120-48LP-HWMS120-48FP-HWMS210-24-HWMS210-24P-HWMS210-48-HWMS210-48LP-HWMS210-48FP-HWMS225-24-HWMS225-24P-HWMS225-48-HWMS225-48LP-HWMS225-48FP-HWSeriesMS250MS350MS355 X Series MS355 X2 SeriesDeployment type Branch & CampusCampus & MultigigabitCampus & Multigigabit High-Density Multigigabit Interfaces24 / 48 x 1G RJ45 ports24 / 48 x 1G RJ451 ports(24X model)16 x 1G RJ451 ports 8 x mGig ports (24X model)16 x 1G RJ451 ports 8 x mGig ports (48X model)32 x 1G RJ451 ports 16 x mGig ports(24X2 model)24 x mGig ports(48X2 model)24 x 1G RJ451 ports 24 x mGig portsUplinks 4 x 10G SFP+ ports 4 x 10G SFP+ ports 4 x 10G SFP+ or 2 x 40G QSFP+4 x 10G SFP+ or 2 x 40G QSFP+PoEcapabilities 370W (P, LP models)740W (FP models)370W (P, LP models)740W (FP, 24X models)740W740WPowerconfiguration ModularRedundant PSU optional ModularRedundant PSU optional ModularRedundant PSU optional ModularRedundant PSU optional Stacking capabilities 80 Gbps physical + virtual160 Gbps physical + virtual400 Gbps physical + virtual400 Gbps physical + virtualRouting capabilitiesStatic + Dynamic 2DHCP Server + Relay Warm spare (VRRP)Static + Dynamic 2DHCP Server + Relay Warm spare (VRRP)Static + Dynamic 2DHCP Server + Relay Warm spare (VRRP)Static + Dynamic 2DHCP Server + Relay Warm spare (VRRP)ModelsMS250-24-HW MS250-24P-HW MS250-48-HW MS250-48LP-HW MS250-48FP-HW MS350-24-HW MS350-24P-HW MS350-48-HW MS350-48LP-HW MS350-48FP-HWMS355-24X-HW MS355-48X-HW MS355-24X2-HW MS355-48X2-HW1Interfaces do not support half-duplex on the MS3502Detailed routing specifications are available in series datasheetsSeriesMS410MS425Deployment type 1G fiber aggregation 10G fiber aggregationInterfaces 16 / 32 x 1G SFP 16 / 32 x 10G SFP+Uplinks2 x 10G SFP+ (MS410-16)4 x 10G SFP+ (MS410-32)2 x 40G QSFP+Powerconfiguration ModularRedundant PSU optional (sold separately)ModularRedundant PSU optional (sold separately)Stacking capabilities 160G physical + virtualFront-port 160G + virtualRouting capabilitiesStatic + Dynamic DHCP Server + Relay Warm spare (VRRP)Static + Dynamic DHCP Server + Relay Warm spare (VRRP)ModelsMS410-16-HW MS410-32-HW MS425-16-HW MS425-32-HWMeraki Aggregation Switching PortfolioAll Cisco Meraki MS switches include a limited lifetime hardware warranty that provides next-day advance hardware replacement. Meraki’s simplified software and support licensing model also combines all software upgrades, centralized systems management, and phone support under a single, easy-to-understand model. For complete details, please visit /support .Lifetime Warranty with Next Day Advance ReplacementINTELLIGENT CAMPUS & BRANCH SWITCHINGWith built-in monitoring, troubleshooting and logging capabilities, Meraki switches provide a refreshing newapproach to managing network infrastructure, regardless of deployment size.Meraki’s Virtual Stacking technology eliminates the need for configuration scripts and commands, empowering administrators to make changes quickly and securely on one or all the switches in a deployment at once.WIRED SECURITY WITHOUT COMPROMISEWhether deployed in an office environment, hospital or retail store, Meraki switches make enforcing securitypolicies a breeze. Set up multiple policies and enable them at the port-level, or apply them across the entire network in a few clicks.Meraki switches also provide comprehensive security reporting, making it easy to proactively discover rogue DHCP servers and other malicious activity on the network.TROUBLESHOOTING, THE WAY IT SHOULD BEDrastically reduce time-to-resolution with a variety ofpowerful troubleshooting tools such as remote cable testing and packet captures that help isolate and troubleshoot network issues.With Meraki’s dynamic network topology, see how the entire network is interconnected, automatically.Ensure the entire team receives alerts upon power loss, downtime, or configuration changes.Meraki switches include all of the traditional Ethernet features found in modern enterprise access switches, including:Remote cable test in the Meraki DashboardFeatures and CapabilitiesMeraki’s cloud management architecture delivers true zero-touch switch provisioning – configure switches before theyarrive onsite, or use Meraki templates to standardize anentire fleet of switches, no matter what size.With Virtual Stacking, IT admins can make configurationchanges to hundreds of switch ports in seconds withour intuitive dashboard interface, enabling rapid andstreamlined switch port management that would otherwisetake weeks to complete.BUILT-IN APPLICATION LAYER VISIBILITY Array Meraki switches include integrated Layer 7 visibility, to helpIT admins identify hundreds of applications, from businessapps to BitTorrent and Y ouTube.User fingerprinting with Google-like search allowsadministrators to easily identify and control individual users,PCs, iMacs, iPads, Androids, and other devices.This unprecedented visibility allows optimizing of networkresources and maintaining optimal network performance. ArrayBEYOND-THE-NETWORK SOFTWAREARCHITECTUREMeraki switches run the same operating system used by allof our products, which allows us to deliver a consistent userexperience for network management.When connected, new Meraki switches automatically reachout to the Meraki cloud and download the most currentconfiguration. Future updates can be user-scheduled,ensuring the network is kept up-to-date with bug fixes,security updates, and new features.Meraki Cloud Management Architecture with All ProductsIncluded In the BoxMS120-8 Series Integrated mounting brackets, External PSU (non-PoE and LP models), Mounting screw kit, Getting started insertMS120 Series Mounting screw kit, Getting started insertMS210 Series Mounting screw kit, Getting started insertMS225 Series Mounting screw kit, Getting started insertMS250 Series Power Supply (1), System fans (2), Mounting screw kit, Getting started insertMS350 Series Stacking cable (1), Power Supply (1), system fans (2), Mounting screw kit, Getting started insertMS355 Series Power Supply (1), 4-post rack mount kit, Pre-Installed Fans (3)MS410 Series Power Supply (1), System fans (2), Mounting screw kit, Getting started insertMS425 Series Power Supply (1), System fans (3), Mounting screw kit, Getting started insertOptional AccessoriesMeraki MS switches support SFP/SFP+/QSFP+/QSFP28 optic accessories for high-speed connectivity. Meraki offers a variety of 1G, 10G, 40G, 100G accessories. Full specifications and compatibility information is available in the Meraki Accessories datasheet: https:///lib/pdf/ meraki_datasheet_sfp.pdfAdditional ResourcesMeraki MS120-8 Compact Series Datasheethttps:///lib/pdf/meraki_datasheet_ms120_compact.pdf Meraki MS120 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms120.pdfMeraki MS210 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms210.pdfMeraki MS225 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms225.pdfMeraki MS250 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms250.pdfMeraki MS350 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms350.pdfMeraki MS355 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms355.pdfMeraki MS410 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms410.pdfMeraki MS425 Series Datasheethttps:///lib/pdf/meraki_datasheet_ms425.pdfMeraki SFP & Stacking Accessories Datasheet/lib/pdf/meraki_datasheet_sfp.pdfCost Calculatorhttps:///buy/cost-calculator。
