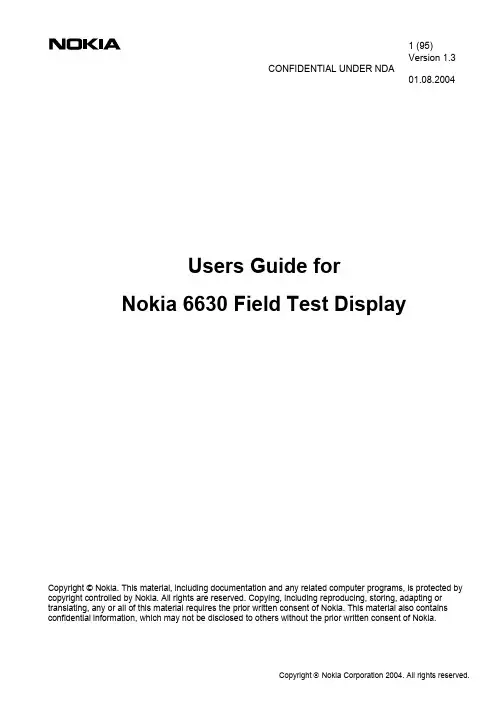

01.08.2004Users Guide forNokia 6630 Field Test DisplayCopyright © Nokia. This material, including documentation and any related computer programs, is protected bycopyright controlled by Nokia. All rights are reserved. Copying, including reproducing, storing, adapting ortranslating, any or all of this material requires the prior written consent of Nokia. This material also containsconfidential information, which may not be disclosed to others without the prior written consent of Nokia.01.08.2004 Change History:Version Date Status Commentsinformation about ciphering change (46.4)Draft Added1.3 01.08.20041.2 16.07.2004 Draft Information about display group 5 added1.1 08.07.2004DraftApproved1.0 28.05.2004Draft0.1 01.05.200401.08.2004 The contents of this document constitute valuable proprietary and confidential property of Nokia and are provided subject tospecific obligations of confidentiality set forth in one or more binding legal agreements.The information in this document is subject to change without notice and describes only the product defined in the introductionof this documentation. This document is intended for the use of the customers of Nokia only for the purposes of the agreementunder which the document is submitted, and no part of it may be reproduced or transmitted in any form or means without theprior written permission of Nokia. The document has been prepared to be used by professional and properly trained personnel,and the customer assumes full responsibility when using it. Nokia and Company welcome customer comments as part of theprocess of continuous development and improvement of the documentation. Any use of this material is limited strictly to theuses specifically authorized in the applicable agreement(s) pursuant to which such material has been furnished. Any use of allor any part of this material not specifically authorized in writing by Nokia is strictly prohibited.The information or statements given in this document concerning the suitability, capacity, or performance of the mentionedhardware or software products cannot be considered binding but shall be defined in the agreement made between Nokia andthe customer. However, Nokia has made all reasonable efforts to ensure that the instructions contained in the document areadequate and free of material errors and omissions. Nokia may, if necessary, explain issues, which may not be covered by thedocument.Liability of Nokia for any errors in the document is limited to the documentary correction of errors. NOKIA SHALLNOT BE RESPONSIBLE IN ANY EVENT FOR ERRORS IN THIS DOCUMENT OR FOR ANY DAMAGES, INCIDENTAL ORCONSEQUENTIAL (INCLUDING MONETARY LOSSES), that might arise from the use of this document or the information in it.This document and the product it describes are considered protected by copyright according to the applicable laws.NOKIA is a registered trademark of Nokia Corporation.Other product names mentioned in this document may be trademarks of their respective companies, and they are mentioned foridentification purposes only.Copyright © Nokia Corporation 2004. All rights reserved.01.08.2004 Table of Content1INTRODUCTION (7)2USING THE FIELD TEST DISPLAYS (7)2.1General (7)2.2Activating Field Test Displays (7)2.3Exiting Field Test Displays (7)2.4Field Test Display modes (7)2.4.1Modes belonging in the use of the displays (7)3Information on the displays (8)Group 01: GSM Signalling displays, which can be visible to network operators (9)Display 01.01: Information of the serving cell (9)Display 01.02: More information of the serving cell (11)Display 01.03: Information of the serving cell, 1st and 2nd neighbour (12)Display 01.04: Information of the 3rd, 4th and 5th neighbour (13)Display 01.05: Information of the 6th, 7th and 8th neighbour (14)Display 01.06: Network selection display (16)Display 01.07: System information bits for serving cell (16)Display 01.08: Paging repeat period, TMSI, periodic location update, AFC and AGC (18)Display 01.09: Network parameters (19)Display 01.10: Ciphering, hopping DTX status and IMSI (19)Display 01.11: Uplink DTX switching display (20)Display 01.12: Storing and removing BTS_TEST carrier (21)Display 01.13: Toggle Cell Barred Status (22)Display 01.14: Modify "last used band" (23)Group 05: GSM Data Displays (25)Display 05.01: HSCSD, Timeslot information display (25)Display 05.02: HSCSD, Timeslot power control level display (25)Group 06: GPRS Signalling displays (27)Display 06.01: Information of the current GPRS state and previous TBF configuration (27)Display 06.02: Previous UL TBF establishment (28)Display 06.03: Information of the GMM state (29)Display 06.04: Values of P-TMSI, RAC, SMS radio priority, Ciphering and Non-DRX parameters30Display 06.05: GPRS Network parameters (31)Display 06.06: Packet control channel parameters (32)Display 06.07: (Packet) System information parameters (32)Display 06.08: Cell re-selection parameters (serving cell) (33)Display 06.09: GPRS information of the serving cell, 1st, 2nd, and 3rd neighbour (34)Display 06.10: GPRS information of the 4th,5th and 6th neighbour (35)Display 06.11: GPRS information of the serving cell and 6 neighbours (36)Display 06.12: EGPRS specific parameters (38)Group 07: GPRS Data protocol displays (39)Display 07.01: Information of the first active PDP context (39)Display 07.02: Information of the second active PDP context (40)Display 07.03: Information of the RLC state (41)Display 07.04: RLC parameters (42)Display 07.05: RLC data block counters (42)Display 07.06: LLC data block counters (43)Display 07.07: LLC Ciphering parameters (43)Display 07.08: LLC parameters of the first SAPI (44)Display 07.09: LLC parameters of the second SAPI (44)Display 07.10: SNDC Data counters (45)Display 07.11: PPP information (45)01.08.2004Display 07.12: ERLC Data information_1 (46)Display 07.13: ERLC Data information_2 (46)Display 07.14: ERLC Data counters (47)Display 07.15: System status (47)Display 07.16: Information of the selected PDP context (48)Display 07.17: QoS of the selected PDP context 1 (49)Display 07.18: QoS of the selected PDP context 2 (50)Display 07.19: PDCP parameters of the selected PDP context (50)Display 07.20: RFC2507 parameters of the selected PDP context (51)Group 08: GPRS Measurement displays (53)Display 08.01: Power control parameters (53)Display 08.02: The previous channel quality report (53)Group 09: GPRS Test counter displays (55)Display 09.02: TBF counters (55)Display 09.10: GPRS attach and detach counters (55)Display 09.11: Periodic routing area update counters (56)Display 09.12: Routing area update counters (56)Display 09.13: PDP context counters (57)Display 09.14: SMS over GPRS counters (58)Display 09.17: MS initiated cell re-selection counters (58)Display 09.18: Network initiated cell re-selection counters (59)Group 10: GSM DSP displays (60)Display 10.04: FER measurements for sub ch0: REAL, FULL and SUB values (60)Display 10.05: FER measurements for sub ch1: REAL, FULL and SUB values (60)Display 10.06: FER measurements for sub ch2: REAL, FULL and SUB values (61)Group 41: WCDMA CDSP displays (63)Display 41.01: RACH MSG TX profile (63)Display 41.02: Dedicated uplink channel power control status (64)Display 41.03: Dedicated downlink channel power control status (65)Display 41.10: FDD neighbour cell summary (66)Display 41.11: FDD ranking summary (67)Display 41.12: FDD frequency summary (68)Display 41.13: FDD intra frequency neighbour summary (69)Displays 41.14 – 41.15: FDD inter frequencies 1 and 2 neighbour summary (70)Display 41.16: FDD mode GSM cell detection summary (72)Display 41.17: FDD detailed cell info (interactive) (72)Group 46: WCDMA RAN System displays (75)Display 46.01: RRC Global Status (75)Display 46.02: PEER message MSC (75)Display 46.03: RNTI Values (77)Display 46.04: Ciphering Capability (77)Display 46.05: Cell Selection - Screen 2 (78)Display 46.06: FDD BTS Carrier Lock Mode (79)Display 46.07: Counter Reset (79)Display 46.08: Call Failure Reasons (80)Display 46.09: L1 State (81)Display 46.10: Cell Reselection - Screen 1 (81)Display 46.11: Radio Access Bearer Information (82)Display 46.12: Radio Bearer Information (83)Display 46.13: Radio Bearer Information (83)Group 47: WCDMA RRC displays (85)Display 47.01: RRC Global State Change Counters (85)Display 47.02: Counters for Timeouts - Screen 1 (85)01.08.2004Display 47.03: Counters for Timeouts - Screen 2 (86)Display 47.04: Peer Message Count- Screen 1 (86)Display 47.05: Peer Message Count- Screen 2 (87)Display 47.06: Peer Message Count-Screen 3 (88)Display 47.07: Peer Message Count-Screen 4 (88)Display 47.08: Peer Message Count-Screen 5 (89)Display 47.09: Peer Message Count-Screen 6 (90)Display 47.10: Peer Message Count-Screen 7 (91)Group 48: WCDMA RLC displays (93)Display 48.01: Set AM Bearer ID (93)Display 48.02: RLC AM State information (93)Group 81: Multimode protocol displays (94)Display 81.01: Force protocol between GSM and WCDMA (94)Display 81.02: Toggle Integrity Protection Mode (95)01.08.2004 1 INTRODUCTIONThis document specifies the features of Nokia 6630 Field Test Displays (FTD). FTD is a configurablesoftware feature that is available in application list. Field Test Display is useful for testing mobilephones during development or for verifying the operation of the network.2 USING THE FIELD TEST DISPLAYS2.1 GeneralWhen the Field Test Display is active, the phone can be used in a similar way than without it. Whenapplication key is pressed FTD will stay on background and it can be activated again by pressingapplication key for about one second and after that select.During proper power off (use of power key or RE-CHARGE indication) some valuable data (e.g. thenumber of current field test display) is stored onto the permanent memory. Next time when phone ispowered on the lastly selected field test display will be automatically re-activated. When Field TestDisplay is active, normal signal and battery level bars are visible.2.2 ActivatingField Test DisplaysThe Field Test Display is located in other folder and can be activated as follows:1. Press application key2. Scroll in the application list to other folder and from there field test display item3. Press the Options button and Open or press rocker to select2.3 Exiting Field Test DisplaysTest display can be deactivated by pressing Exit key or1. Press the Options button2. Choose Exit2.4 Field Test Display modes2.4.1 Modes belonging in the use of the displaysThere are two Field Test Displays modes:• Execute mode• Data display modeDifferent modes are marked in this specification as follows:Execute mode: Data display mode:************************** +++++++++++++++++++++++++++* Execute display * + Parameter 1 aaaa +* With this display it is * + Parameter 2 bbbb +* possible to reset * + Parameter 3 cccc +* registration / mobility * + Parameter 4 dddd +* counters. Use options * + Parameter 5 eeee +01.08.2004* to change. * + Parameter 6 ffff +* * + Parameter 7 gggg +* * + Pa 8 / Pa 9 hhhh iiii+* * + Pa10 / Pa11 jjjj kkkk+************************** +++++++++++++++++++++++++++OPTIONS EXIT OPTIONS EXITThe execute mode can be selected by choosing options from every execute display. The data displaymode displays data with parameter text. The rocker key (<,>^,v) offer an easy way to switch toanother test displays without using the options menu. Rocker (<,>) can be used to change differentdisplay groups, e.g. from Group1: GSM signalling displays to Group 6: GPRS signalling displays.Rocker (^,v) can be used to change different data displays within one group.3 INFORMATION ON THE DISPLAYSLength of a field is shown in the display picture by amount of the letters. Two notations are currentlyused. Examples of an old and new notations:Old notation New notationField with 5 letters, field name a aaaaa a(5)Field with 4 letters, field name h Hhhh h(4)If a value is not available, 'x' is shown for all the digits. If data to be displayed is shorter than the fieldreserved to show that data, text is aligned left and numbers right.As so many field test display as possible are defined to be common. The rest of the displays aredivided based on protocol (GSM, WCDMA). All displays are divided into different groups based onthat and in every group display numbering starts from 01. Format of the field is shown in Formatcolumn using next symbols:Symbol DescriptionDW:D double word, 32bit value shown in decimalDW:H double word, 32bit value shown in hexadecimalW:D word, 16bit value shown in decimalW:H word, 16bit value shown in hexadecimalB:D byte, 8bit value shown in decimalB:H byte, 8bit value shown in hexadecimalS String01.08.2004Group 01: GSM Signalling displays, which can be visible to network operatorsThe network operators can activate these signalling displays. Before field test displays are visible,mobile has to be modified. With the normal production mobile, field test displays are not working.Display 01.01: Information of the serving cellData Display:++++++++++++++++++++++++++++ Channel num abbb ++ Rx level ccc ++ Tx power lev ddd ++ GPRS attach qq ++ TS / TA e ff ++ Rx / R time g mmmm ++ C1 / C2 nnn ppp ++ Band/ CHty rr oooo ++ Amr U/AMR D x y ++++++++++++++++++++++++++++Abbr. Format Descriptiona H, if carrier numbers are scrolled whenhopping is on. Otherwise '.'bbb When mobile is on TCH: DCH carriernumber of serving cell in decimal.When mobile is NOT on TCH: CH meanscarrier number of serving cell in decimal.If hopping is on, used channels arescrolled when display is updatedERR means that mobile is out of band.ccc Rx level in dBm, minus sign not shown if<=-100ddd Tx power level. If transmitter is on, symbol* is shown in front of the power levelvalue.e Time Slot, range is 0 – 7ff Timing advance, range is 0 - 63g Rx quality (sub), range is 0 - 7mmmm Radio Link Timeout value. If value isnegative, 0 is shown. Maximum value is64.When mobile is NOT on TCH then xx isshownnn Value of the path loss criteria (C1). Rangeis -99 - 999. ERR means that the value isout of range, e.g. because it was not ableto be calculatedppp Value of the cell reselection criteria (C2).Range is -99 - 999. If phone is phase 1then C1 value is shown. ERR means thatthe value is out of range, e.g. because itwas not able to be calculated.01.08.2004 rr Currently used band. Values:9 = GSM900,18 = GSM1800,19 = GSM1900 ….. extensible for futureoooo Type of current channelTHR0: TCH HR subchannel 0THR1: TCH HR subchannel 1AHS0: TCH AHS subchannel 0AHS1: TCH AHS subchannel 1TFR: TCH FRAFS: TCH AFSTEFR: TCH EFRF144: TCH FR data channel, speed 14.4kbpsF96: TCH FR data channel, speed 9.6kbpsF72: TCH FR data channel, speed 7.2kbpsF48 : TCH FR data channel, speed 4.8kbpsF24 : TCH FR data channel, speed 2.4kbpsH480 : TCH HR data channel, speed 4.8kbps, subch 0H481 : TCH HR data channel, speed 4.8kbps, subch 1H240 : TCH HR data channel, speed 2.4kbps, subch 0H241 : TCH HR data channel, speed 2.4kbps, subch 1FA: TCH FR signalling only (FACCH)channelFAH0 : TCH HR signalling only (FACCH)channel, subch 0FAH1 : TCH HR signalling only (FACCH)channel, subch 1PCCC, PBCC, PAGC : GPRS packetcontrol channelPNDR: GPRS non-DRX mode (inPCCCH)PDTC: GPRS traffic channelNDRX: GPRS non-DRX mode (in CCCH)SDCC : SDCCHAGCH : AGCHCCCH : CCCHCBCH : CCCH and cell broadcastreceiving onBCCH : BCCHSEAR : SEARCHNSPS : MS is in No Serv Power Savestateqq G if MS is GSM-GPRS attached,GP if attached and PDP context created,U if UMTS-GPRS attached,UP if attached and PDP context created,otherwise empty.x Current absolute uplink mode on AMRchannels, (0-7). 0=4.75, 1=5.15, 2=5.9,01.08.20043=6.7, 4=7.4, 5=7.95, 6=10.2, 7=12.2.y Current absolute downlink mode on AMRchannels. See definition above.Display 01.02: More information of the serving cellData Display:++++++++++++++++++++++++++++ Paging mode aa ++ max RACH retr b ++ Roaming ind c ++ BSIC value bdd ++ CC cause ee ++ Rx quality f ++ CRO / Hopping ggg hh ++ PenT / HCh iii j ++ MAIO / HSN mm nn ++++++++++++++++++++++++++++DescriptionAbbr. Formatmodeaa PagingNO : normal pagingEX : extended pagingRO : paging reorganizationSB : same as beforeb Maximum number of Random Accessretransmissionc Roaming indicator, values are R or empty.bdd Letter B and BSIC value, range is 0 - 63.ee Reason of last call release. Cause frommessages disconnect and release complete.f RX quality (full), range is 0 – 7ggg Cell reselect offset, range 0 - 126 dB.0 - 63 * 2 dB. 'xxx' in active mode.hh Temporary offset, range 0 - 60 dB.0 - 7 * 10 dB. 70 dB means infinite time.'xx' in active mode.iii Penalty time, range 0 - 620 s.0 - 31 * 20 s. 'xxx' in active modechannelj Hopping0 Single RF channel1 RF hopping channelmm Mobile allocation index offset, MAIORange: 00 to 63 / xx when H=0nn Hopping sequence number, HSNRange: 00 to 63 / xx when H=001.08.2004 Display 01.03: Information of the serving cell, 1st and 2nd neighbourData Display:++++++++++++++++++++++++++++ Serving cell info ++ CH: C1: Rx: C2: ++ aaa bbb ccc ddd ++ 1. Neighbour info ++ eee fff ggg hhh ++ 2. Neighbour info ++ iii jjj kkk lll ++ 1. Neigbor ar mn ++ 2. Neigbor ar op ++++++++++++++++++++++++++++1. row: serving cell information2. row: 1. neighbour information3. row: 2. neighbour information4. row, mn: 1. neighbour information4. row, op: 2. neighbour informationAbbr . FormatDescriptionaaa Carrier number of serving cell in decimal bbb C1 value of serving cell, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ccc Rx level of serving cell in dBm, minus signnot shown if <=-100ddd C2 value of serving cell, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. eee Carrier number of 1. neighbour in decimalfff C1 of 1. neighbour value, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ggg Rx level of 1. neighbour in dBm, minus signnot shown if <=-100hhh C2 of 1. neighbour value, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. iii Carrier number of 2. neighbour in decimaljjj C1 value of 2. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.01.08.2004kkk Rx level of 2. neighbour in dBm, minus signnot shown if <=-100lll C2 value of 2. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated.m F is shown if cell is in a forbidden locationarea, otherwise location is empty.n B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.o F is shown if cell is in a forbidden locationarea, otherwise location is empty.p B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.Display 01.04: Information of the 3rd, 4th and 5th neighbourData Display:++++++++++++++++++++++++++++ 3. Neighbour info ++ aaa bbb ccc ddd ++ 4. Neighbour info ++ eee fff ggg hhh ++ 5. Neighbour info ++ iii jjj kkk lll ++ 3. Neigbor ar mn ++ 4. Neigbor ar op ++ 5. Neigbor ar QR ++++++++++++++++++++++++++++1. row: 3. neighbour information2. row: 4. neighbour information3. row: 5. neighbour information4. row, mn: 3. neighbour information5. row, op: 4. neighbour information6. row, qr: 5. neighbour informationAbbr . FormatDescriptionaaa Carrier number of 3. neighbour in decimal bbb C1 value of 3. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ccc Rx level of 3. neighbour in dBm, minus signnot shown if <=-100ddd C2 value of 3. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. eee Carrier number of 4. neighbour in decimalfff C1 value of 4. neighbour, range is -99 - 999,displayed only in idle mode. ERR means that01.08.2004the value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ggg Rx level of 4. neighbour in dBm, minus signnot shown if <=-100hhh C2 value of 4. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated.iii Carrier number of 5. neighbour in decimaljjj C1 value of 5. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.kkk Rx level of 5. neighbour in dBm, minus signnot shown if <=-100lll C2 value of 5. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated.m F is shown if cell is in a forbidden locationarea, otherwise location is empty.n B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.o F is shown if cell is in a forbidden locationarea, otherwise location is empty.p B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.Q F is shown if cell is in a forbidden locationarea, otherwise location is empty.R B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.Display 01.05: Information of the 6th, 7th and 8th neighbourData Display:++++++++++++++++++++++++++++ 6. Neighbour info ++ aaa bbb ccc ddd ++ 7. Neighbour info ++ eee fff ggg hhh ++ 8. Neighbour info ++ iii jjj kkk lll ++ 6. Neigbor ar mn ++ 7. Neigbor ar op ++ 8. Neigbor ar qr ++++++++++++++++++++++++++++1. row: 6. neighbour information2. row: 7. neighbour information3. row: 8. neighbour information4. row, ef: 6. neighbour information01.08.20045. row, gh: 7. neighbour information6. row, ij: 8. neighbour informationAbbr . FormatDescriptionaaa Carrier number of 6. neighbour in decimal bbb C1 value of 6. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ccc Rx level of 6. neighbour in dBm, minus signnot shown if <=-100ddd C2 value of 6. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. eee Carrier number of 7. neighbour in decimalfff C1 value of 7. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.ggg Rx level of 7. neighbour in dBm, minus signnot shown if <=-100hhh C2 value of 7. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. iii Carrier number of 8. neighbour in decimaljjj C1 value of 8. neighbour, range is -99 - 999,displayed only in idle mode. ERR means thatthe value is out of range, e.g. because it wasnot able to be calculated.Instead of C1 value, letter 'B' and BSIC valuewill be displayed in active mode.kkk Rx level of 8. neighbour in dBm, minus signnot shown if <=-100lll C2 value of 8. neighbour, range is -99 – 999.ERR means that the value is out of range,e.g. because it was not able to be calculated. m F is shown if cell is in a forbidden locationarea, otherwise location is empty.n B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.o F is shown if cell is in a forbidden locationarea, otherwise location is empty.p B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.q F is shown if cell is in a forbidden locationarea, otherwise location is empty.r B is Barred, N is normal priority and L is lowpriority, otherwise location is empty.01.08.2004Display 01.06: Network selection displayThis display shows the last registered network country code and network code as well asthe codes for four forbidden networks and the first 3 preferred networks.Data Display:++++++++++++++++++++++++++++ Last reg 1st forbidd++ aaaaaa eeeeee ++ 1st pref 2nd forbidd++ bbbbbb ffffff ++ 2nd pref 3rd forbidd ++ cccccc gggggg ++ 3rd pref 4th forbidd ++ dddddd hhhhhh ++ ++++++++++++++++++++++++++++1. row: last registered network - 1st forbidden network2. row: 1st preferred network - 2nd forbidden network3. row: 2nd preferred network - 3rd forbidden network4. row: 3rd preferred network - 4th forbidden networkAbbr . FormatDescriptiona(6) Last registered networkb(6) 1. preferred networkc(6) 2. preferred networkd(6) 3. preferred networke(6) 1. forbidden PLMN in SIMf(6) 2. forbidden PLMN in SIMg(6) 3. forbidden PLMN in SIMh(6) 4. forbidden PLMN in SIMDisplay 01.07: System information bits for serving cell Data Display:++++++++++++++++++++++++++++ Emergency cal a++ Attach detach b ++ Half rate CH c ++ C2 broadcast d ++ SI 7&8 broad e ++ Cell broad f ++ Call Re-est g ++ ECSC / 2-Ter h i ++ Mband / GPRS j k +01.08.2004+++++++++++++++++++++++++++DescriptionAbbr. Modea R,I,O 1 is shown if emergency calls are supported,else 0b R,I,O 1 is shown if attach-detach-procedure isallowed, else 0c R,I,O 1 is shown if half rate channels are supported,else 0d R,I,O 1 is shown if C2 values are broadcast, else 0e R,I,O 1 is shown if system information 7 and 8 arebroadcast, else 0f R,I,O 1 is shown if cell broadcast is supported, else 0g R,I,O 1 is shown if re-establishment is supported,else 0h R,I,O In idle mode 1 is shown if Early Classmark(ECSC) sending is supported, else 0. Indedicated mode (conversation) X is shown.i R,I,O In idle mode 1 is shown if 2-Ter messages aresupported, else 0.In dedicated mode (conversation) X is shown.j R,I,O MultiBand reporting decimal value (0,1,2,3) isshown if supported. This is shown both in idleand dedicated mode.k R,I,O 1 is shown if GPRS is supported, else 0The following is picked from Phase2+ ETSI GSM 05.08 version 5.4.0, Section 8.4.3 ""Additional cellreporting requirements for multiband MS"".For a multi band MS the number of cells, for each frequency band supported, which shall be includedin the measurement report is indicated by the parameter, MULTIBAND_REPORTING. The meaningof different values of the parameter is specified as follows:Value Meaning0 (00) Normal reporting of the six strongest cells, with known and allowed NCC part of BSIC,irrespective of the band used.1 (01) The MS shall report the strongest cell, with known and allowed NCC part of BSIC, in eachof the frequency bands in the BA list, excluding the frequency band of the serving cell.The remaining positions in the measurement report shall be used for reporting of cells inthe band of the serving cell. If there are still remaining positions, these shall be used toreport the next strongest identified cells in the other bands irrespective of the band used.2 (10) The MS shall report the two strongest cells, with known and allowed NCC part of BSIC, ineach of the frequency bands in the BA list, excluding the frequency band of the servingcell. The remaining positions in the measurement report shall be used for reporting ofcells in the band of the serving cell. If there are still remaining positions, these shall beused to report the next strongest identified cells in the other bands irrespective of theband used.3 (11) The MS shall report the three strongest cells, with known and allowed NCC part of BSIC,in each of the frequency bands in the BA list, excluding the frequency band of the servingcell. The remaining positions in the measurement report shall be used for reporting ofcells in the band of the serving cell. If there are still remaining positions, these shall beused to report the next strongest identified cells in the other bands irrespective of theband used.。
