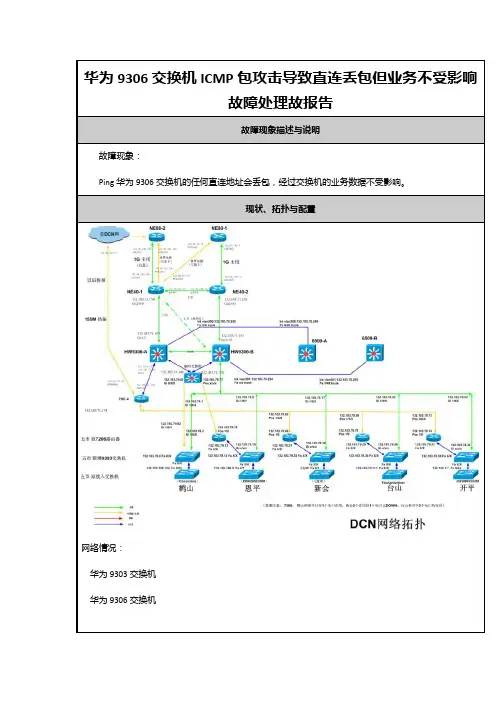

故障现象及处理
步骤一：1、在交换机9306-B上通过命令display logbuffer查看
Apr 23 2012 14:25:16 JM-SN5L-DCN-9306-2 %%01QOSE/4/CPCAR_DROP_LPU(l): Some packets are dropped by cpcar on the LPU in slot 1. (Protocol=icmp, Drop-Count=0529546)
Apr 23 2012 14:25:16 JM-SN5L-DCN-9306-2 %%01QOSE/4/CPCAR_DROP_MPU(l): Some packets are dropped by cpcar on the MPU. (Protocol=icmp, Drop-Count=049663)
Apr 23 2012 14:15:16 JM-SN5L-DCN-9306-2 %%01QOSE/4/CPCAR_DROP_LPU(l): Some packets are dropped by cpcar on the LPU in slot 1. (Protocol=icmp, Drop-Count=0489843)
Apr 23 2012 14:15:16 JM-SN5L-DCN-9306-2 %%01QOSE/4/CPCAR_DROP_MPU(l): Some packets are dropped by cpcar on the MPU. (Protocol=icmp, Drop-Count=049826)
Apr 23 2012 14:09:39 JM-SN5L-DCN-9306-2 %%01HWCM/4/EXIT(l): Exit from configure mode.
Apr 23 2012 14:05:16 JM-SN5L-DCN-9306-2 %%01QOSE/4/CPCAR_DROP_LPU(l): Some packets are dropped by cpcar on the LPU in slot 1. (Protocol=icmp, Drop-Count=0483657)
大量的icmp包到达设备后由主引擎和slot1的CPCAR进行丢弃。
2、在交换机9306-B上通过命令display cpu-defend statistics all查看
CPCAR on mainboard
-------------------------------------------------------------------------------
Packet Type Pass(Bytes) Drop(Bytes) Pass(Packets) Drop(Packets)
stp 0 0 0 0
smart-link 0 0 0 0
ldt 0 0 0 0
lacp 0 0 0 0
lldp 0 0 0 0
dldp 0 0 0 0
vrrp 0 0 0 0
isis 0 0 0 0
igmp 0 0 0 0
pim 0 0 0 0
rip 0 0 0 0
bgp 88257 0 1175 0 mpls-rsvp 0 0 0 0 mpls-ldp 0 0 0 0
ttl-expired 0 0 0 0
icmp 118941948 52491134 1828397 807336 eoam-3ah 0 0 0 0 mpls-ping 0 0 0 0 mpls-ttl-expired 0 0 0 0
ntp 0 0 0 0 ripng 0 0 0 0 ospfv3 0 0 0 0 bgp4plus 0 0 0 0 pimv6 0 0 0 0 hotlimit 0 0 0 0
vrrp6 0 0 0 0 mld 13130 0 135 0 icmpv6 0 0 0 0 telnet 800735 0 12506 0 ssh 0 0 0 0
ftp 0 0 0 0 snmp 0 0 0 0 radius 0 0 0 0
hw-tacacs 0 0 0 0 tcp 14052 0 198 0 mpls-fib-hit 0 0 0 0
fib-hit 0 0 0 0
arp-miss 16302 0 207 0 unknown-packet 0 0 0 0
pppoe 0 0 0 0 bpdu-tunnel 0 0 0 0 rrpp 0 0 0 0 udp-helper 0 0 0 0 -------------------------------------------------------------------------------
CPCAR on slot 1
-------------------------------------------------------------------------------
Packet Type Pass(Bytes) Drop(Bytes) Pass(Packets) Drop(Packets) arp-request 11968 0 176 0 arp-reply 4420 0 66 0 stp 0 0 0 0 smart-link 0 0 0 0 ldt 0 0 0 0 lacp 0 0 0 0 lldp 0 0 0 0 dldp 0 0 0 0 vrrp 0 0 0 0 mpls-oam 0 0 0 0 isis 0 0 0 0 dhcp-client 0 0 0 0 dhcp-server 0 0 0 0 igmp 0 0 0 0 pim 0 0 0 0 rip 0 0 0 0 ospf 2122962 0 22963 0 bgp 91561 0 1175 0 bfd 0 0 0 0 mpls-rsvp 0 0 0 0
