电子产品规格书(连接器)

YG669系列电连接器一、物料简介该系列连接器为金属壳体，屏蔽效果好，可实现360°全屏蔽，体积小，特别适用于空间狭小的场合。

该系列产品为单芯大电流连接器，适配电缆为50mm²、70mm²屏蔽或非屏蔽电缆。

采用推拉式快速锁紧结构，具有二次锁紧功能，操作简易，连接可靠。

接触件具有防触电保护功能。

防错插：同时具备结构防误和视觉防误两种措施，结构上采用多键位防止错插设计，连接器外部通过不同颜色的配置实现视觉防错。

防护等级高，插头与插座配合后，防护等级达IP67 如有特殊要求，请咨询四川永贵公司相关人员，我们将为你提供相关设计方案及技术规格书二、技术参数 1、电气特性额定电流：220A （50mm ²），270A （70mm ²） 额定电压：630 AC/DC 耐电压：3000V AC 接触电阻：≤0.2mΩ绝缘电阻：≥5000 M Ω（常态），≥500 M Ω（湿热） 2、机械特性3、工作环境：工作温度：-40℃~+125℃湿度：≤80%（温度为40±2℃）三、型号命名方式 插头：设计序列号:YG669插针：P接触件数量：1直插头: P 弯插头:PW 接触件端接形式,压接：Y适用电缆截面积（单位：mm2）屏蔽:P防错插色带颜色：R：红、G：绿、B：蓝、H：黑、Y：黄防错插键位角度：W：45°、X：90°Y：135°、Z：180°插座：Φ8设计序列号:YG669插孔：S接触件数量：1插座: R接触件端接形式:压接：Y连接铜排连接：T 连接接线端子：D尾部端接形式描述：M8螺钉过孔：Φ8M8螺纹孔：M8防错插色带颜色：R：红、G：绿、B：蓝、H：黑、Y：黄防错插键位角度：W：45°、X：90°Y：135°、Z：180°屏蔽:P安装方式：法兰安装：F四、外形尺寸插头：插座。

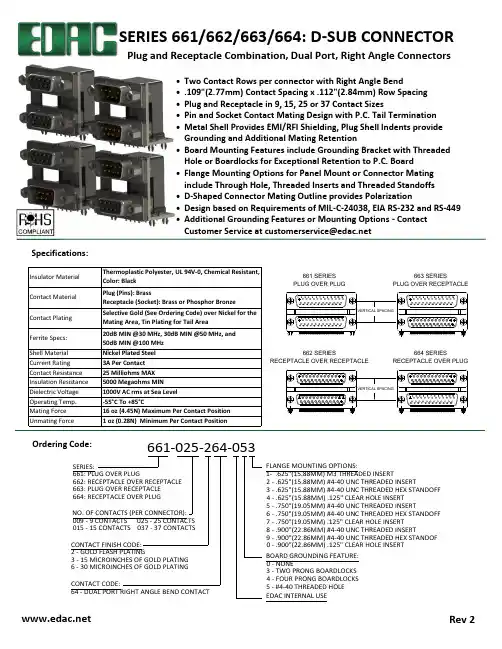

Insulator Material Thermoplastic Polyester, UL 94V-0, Chemical Resistant, Color: BlackContact Material Plug (Pins): BrassReceptacle (Socket): Brass or Phosphor Bronze Contact Plating Selective Gold (See Ordering Code) over Nickel for the Mating Area, Tin Plating for Tail Area Ferrite Specs:20dB MIN @30 MHz, 30dB MIN @50 MHz, and 50dB MIN @100 MHzShell Material Nickel Plated Steel Current Rating 3A Per Contact Contact Resistance 25 Milliohms MAX Insulation Resistance 5000 Megaohms MIN Dielectric Voltage 1000V AC rms at Sea Level Unmating Force1 oz (0.28N) Minimum Per Contact PositionOperating Temp.-55°C To +85°CMating Force 16 oz (4.45N) Maximum Per Contact Position Ordering Code:Plug and Receptacle Combination, Dual Port, Right Angle Connectors•Two Contact Rows per connector with Right Angle Bend•.109"(2.77mm) Contact Spacing x .112"(2.84mm) Row Spacing •Plug and Receptacle in 9, 15, 25 or 37 Contact Sizes•Pin and Socket Contact Mating Design with P.C. Tail Termination •Metal Shell Provides EMI/RFI Shielding, Plug Shell Indents provide Grounding and Additional Mating Retention•Board Mounting Features include Grounding Bracket with Threaded Hole or Boardlocks for Exceptional Retention to P.C. Board•Flange Mounting Options for Panel Mount or Connector Mating include Through Hole, Threaded Inserts and Threaded Standoffs •D-Shaped Connector Mating Outline provides Polarization•Design based on Requirements of MIL-C-24038, EIA RS-232 and RS-449•Additional Grounding Features or Mounting Options -Contact *****************************************Specifications:SERIES:661: PLUG OVER PLUG662: RECEPTACLE OVER RECEPTACLE 663: PLUG OVER RECEPTACLE 664: RECEPTACLE OVER PLUG661-025-264-053NO. OF CONTACTS (PER CONNECTOR):009 - 9 CONTACTS 025 - 25 CONTACTS 015 - 15 CONTACTS 037 - 37 CONTACTS CONTACT FINISH CODE:2 - GOLD FLASH PLATING3 - 15 MICROINCHES OF GOLD PLATING 6 - 30 MICROINCHES OF GOLD PLATING CONTACT CODE:64 - DUAL PORT RIGHT ANGLE BEND CONTACTBOARD GROUNDING FEATURE:0 - NONE3 - TWO PRONG BOARDLOCKS4 - FOUR PRONG BOARDLOCKS5 - #4-40 THREADED HOLE EDAC INTERNAL USEFLANGE MOUNTING OPTIONS:1- .625"(15.88MM) M3 THREADED INSERT2 - .625"(15.88MM) #4-40 UNC THREADED INSERT3 - .625"(15.88MM) #4-40 UNC THREADED HEX STANDOFF4 - .625"(15.88MM) .125" CLEAR HOLE INSERT5 - .750"(19.05MM) #4-40 UNC THREADED INSERT6 - .750"(19.05MM) #4-40 UNC THREADED HEX STANDOFF7 - .750"(19.05MM) .125" CLEAR HOLE INSERT8 - .900"(22.86MM) #4-40 UNC THREADED INSERT9 - .900"(22.86MM) #4-40 UNC THREADED HEX STANDOF 0 - .900"(22.86MM) .125" CLEAR HOLE INSERT PLUG OVER PLUG PLUG OVER RECEPTACLERECEPTACLE OVER PLUGRECEPTACLE OVER RECEPTACLE661 SERIES 663 SERIES664 SERIES662 SERIESVERTICAL SPACINGVERTICAL SPACINGSERIES 661/662/663/664: D-SUB CONNECTORRECEPTACLE/RECEPTACLE 662 SERIES1.511(38.38)1.5341.852(47.04)(38.96)(53.04)252.088 2.1822.729372.500(69.32)(63.50)(54.84)(55.42)2.159.666.994Inch 1.2131.543Inch 915NUMBER OF CONTACTS.9841.312Inch (30.81)(39.19)(mm)A±0.38(24.99)(33.32)(mm)B±0.25RECEPTACLE(16.33)(24.66)(mm)(16.92)(25.25)C±0.13PLUG(mm).643.971D±0.13InchE±0.25F±0.38.625 .900.750Inch 1.119(15.88)(19.05)(22.86) 1.2441.394(mm)Inch(28.43)(31.60)(35.41)(mm)PLUG/PLUG 661 SERIES8.36±0.132.8412.55±0.38FE6.00±0.253.18±0.3819.60±0.258.088.003.922.848.082.8414.84±0.258.36±0.132.8412.55±0.38B A 2.770C2.770RECOMMENDED P.C.B LAYOUTP.C.B EDGE7.90±0.132.8412.55±0.38FE 5.80±0.254-Ø3.20BØ1.102.772.778.088.002.843.922.848.083.18±0.38FOR ALL SERIES19.60±0.258.088.003.928.082.8414.84±0.257.90±0.132.8412.55±0.38B A 2.770D2.770FOR ALL SERIESFOR ALL SERIESVERTICAL SPACINGCTR TO CTRRECEPTACLE/PLUG 664 SERIES1.511(38.38)1.5341.852(47.04)(38.96)(53.04)252.088 2.1822.729372.500(69.32)(63.50)(54.84)(55.42)2.159.666.994Inch 1.2131.543Inch 915NUMBER OF CONTACTS.9841.312Inch (30.81)(39.19)(mm)A±0.38(24.99)(33.32)(mm)B±0.25RECEPTACLE(16.33)(24.66)(mm)(16.92)(25.25)C±0.13PLUG(mm).643.971D±0.13InchVERTICAL SPACINGCTR TO CTR E±0.25F±0.38.625 .900.750Inch 1.119(15.88)(19.05)(22.86) 1.2441.394(mm)Inch(28.43)(31.60)(35.41)(mm)PLUG/RECEPTACLE 663 SERIESRECOMMENDED P.C.B LAYOUTP.C.B EDGE4-Ø3.20BØ1.102.772.778.088.002.843.922.848.08FOR ALL SERIESFOR ALL SERIESFOR ALL SERIES7.90±0.132.8412.55±0.38FE 3.18±0.3819.60±0.258.088.003.922.848.082.8414.84±0.258.36±0.132.8412.55±0.38B A 2.770C D2.770 6.00±0.255.80±0.258.36±0.132.8412.55±0.38FE 3.18±0.3819.60±0.258.088.003.922.848.082.8414.84±0.257.90±0.132.8412.55±0.38B A 2.770D C2.7705.80±0.256.00±0.25。

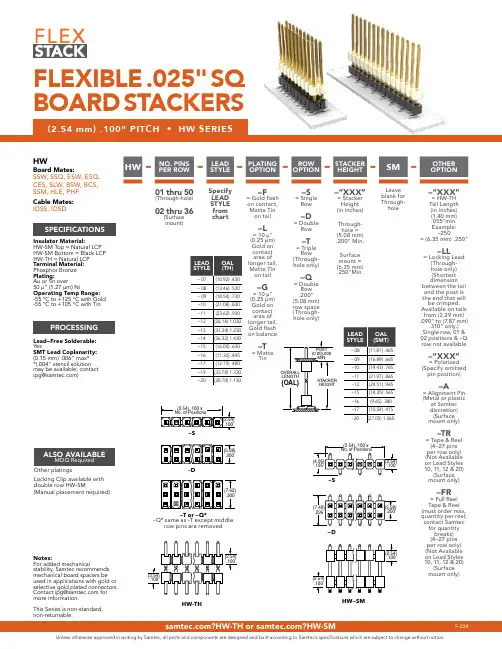

---PLATING OPTION-ROW OPTION-STACKER HEIGHT-SM-OTHER OPTION01 thru 50(Through-hole)02 thru 36(Surface mount)Specify LEAD STYLE from chart–F= Gold flash on contact,Matte Tin on tail –L= 10 µ" (0.25 µm) Gold on contact area of longer tail, Matte Tin on tail –G= 10 µ" (0.25 µm) Gold on contact area of longer tail, Gold flash on balance –T= Matte Tin–S = Single Row –D = Double Row –T= Triple Row (Through-hole only)–Q= Double Row .200" (5.08 mm) row space (Through-hole only)–“XXX”= Stacker Height (in inches)Through-hole =(5.08 mm) .200" Min.Surface mount =(6.35 mm) .250"Min.Leave blank for Through-hole–“XXX”= HW-TH Tail Length (in inches) (1.40 mm) .055"min.Example: –250= (6.35 mm) .250"–LL= Locking Lead (Through-hole only) (Shortest dimension between the tail and the post is the end that will be crimped. Available on tails from (2.29 mm) .090" to (7.87 mm).310" only.)Single row, 01 & 02 positions & –Q row not available –“XXX”= Polarized (Specify omitted pin position)–A= Alignment Pin (Metal or plastic at Samtec discretion)(Surface mount only)–TR= Tape & Reel (4–27 pins per row only)(Not Available on Lead Styles 10, 11, 12 & 20)(Surface mount only)–FR= Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) (4–27 pins per row only)(Not Available on Lead Styles 10, 11, 12 & 20)(Surface mount only)Insulator Material:HW-SM Top = Natural LCP HW-SM Bottom = Black LCP HW-TH = Natural LCP Terminal Material: Phosphor Bronze Plating:Au or Sn over50 µ" (1.27 µm) NiOperating Temp Range:-55 °C to +125 °C with Gold -55 °C to +105 °C with TinLead–Free Solderable: YesSMT Lead Coplanarity:(0.15 mm) .006" max**(.004" stencil solution may be available; contact **************)Notes:For added mechanicalstability, Samtec recommends mechanical board spacers be used in applications with gold or selective gold plated connectors. ************************more information.This Series is non-standard,non-returnable.HWBoard Mates:SSW, SSQ, ESW, ESQ, CES, SLW, BSW, BCS, SSM, HLE, PHF Cable Mates:IDSS, IDSDHW-THHW—SM–Q* same as –T except middlerow pins are removedOther platingsLocking Clip available with double row HW-SM(Manual placement required)FLEXIBLE .025" SQ BOARD STACKERSUnless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.F-224。

产品型号：DHADEP2225R
产品名称：DEP2-225 32A 5芯 415V⼯业连接器产品规格书
发布⽇期：2022/05/18
认证资质：C Q
C
1. 适⽤范围
本产品规格书对产品的性能进⾏了规范，作为技术确认的依据。

2. ⼀般特性
该产品可在⼴泛⽤于⼯业、农业、化⼯、机场、码头、船舶、冶⾦、电⼚、建筑、铁路、⽔利等各种⼾内、⼾外场所等。

3. 产品结构
本产品为产品按照国家标准 GB/T11918.1-2014； GB11918.2-2014； 设计⽣产，产品规格为DEP2-225 32A 5芯415V⼯业连接器，连接器为3P+N+ ，使⽤范围415V，产品防护级IP44。

4. 关键材质参数
5. 技术特性
6. 产品外形安装尺⼨图
注：L1,L2,L3为⽕线，N为零线，
为地线
1.⼯业连接器
2.⽤螺丝⼑按压⿊卡⼦，旋转扭开产品
3
.拆开之后⾥⾯的情景
4
.将电线穿过尾部
5.松开铜件螺丝
6.把电线插进铜件孔并拧紧螺丝
8.完成接线的样⼦
7. ⼯业连接器五芯接线步骤
7.组装好电线并合上插盖，拧紧螺帽。

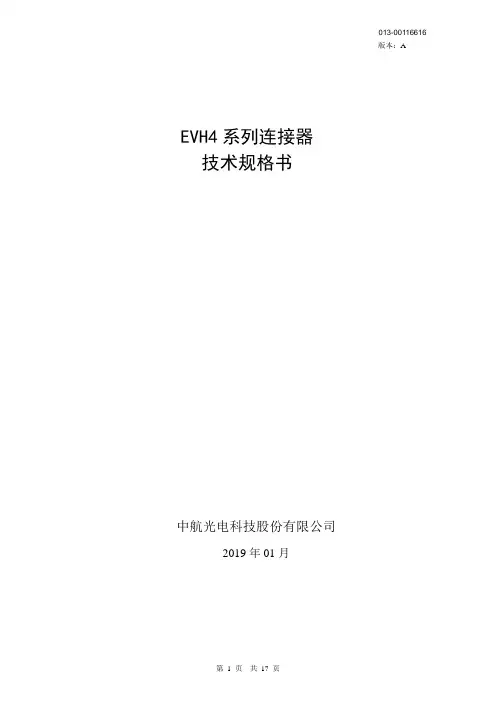

EVH4系列连接器技术规格书中航光电科技股份有限公司2019年01月型号命名系列主称 EVH4系列连接器 EVH4 - C 2 T K - 35 W A 分隔符 -壳体号 标出字母：C 芯数 标出数字：2、3 头/座类型插头：T 插座：Z接触件类型 插针：J 插孔：K 分隔符 -电缆规格 插头适配电缆规格35mm²： 插座省略插头出线角度或者插座接触件安装形式 插头直式出线： 缺省 插头弯式出线： W 插座铜排压铆螺母：H 插座铜排通孔： T 插座螺柱： M键位标出字母：A 、B 、C 、D注：系列主称、壳体号、芯数、键位均相同的头和座可对插。

如：插头EVH4-C2TK-XXXX 和插座EVH4-C2ZJ-XX 可对插。

订货型号三芯型号有A 、B 两个键位，后续所有涉及不同键位型号均采用“A ”型号替代 。

产品简介基本情况EVH4系列连接器符合中航光电企业技术规范Q/21EJ3979-2016，产品为车载高压互锁连接器，适用于电机控制器、PDU、电池等设备的强电连接。

产品采用塑料壳体，头座连接采用把手直推拉锁紧，具有连接可靠、操作方便等优点。

产品具有多键位防错、高压互锁、屏蔽、防水等功能。

工艺使用1、插头接触件端接方式为压接。

2、插头自带与芯数对应数目的接触件，如果因工艺要求（如压接测试、压接损坏等）需要额外接触件时，请按下列适配接触件表对应的接触件编号另行采购。

主要技术性能产品尺寸EVH4-C2TK-35WA EVH4-C2TK-50WA 未注公差：±0.5EVH4-C2TK-35A EVH4-C2TK-50A 未注公差：±0.5EVH4-C3TK-35WA EVH4-C3TK-50WA 未注公差：±0.5EVH4-C3TK-35A EVH4-C3TK-50A 未注公差：±0.5EVH4-C2ZJ-HA未注公差：±0.5EVH4-C2ZJ-HAG001 未注公差：±0.5EVH4-C2ZJ-TA未注公差：±0.5EVH4-C3ZJ-HA未注公差：±0.5EVH4-C3ZJ-HAG001 未注公差：±0.5EVH4-C3ZJ-TA未注公差：±0.5推荐安装面板尺寸EVH4-C2ZJ-T(N)A(/B/C/D)EVH4-C2ZJ-H(N)A(/B/C/D)G001 EVH4-C2ZJ-H(N)A(/B/C/D)型号与推荐安装面板尺寸对应表推荐安装面板尺寸EVH4-C3ZJ-T(N)A(/B)EVH4-C3ZJ-H(N)A(/B) G001 EVH4-C3ZJ-H(N)A(/B)更改记录注：本规格书的更改在不降低产品性能、不更改产品状态时，将不通知客户。

H J S THeader for 2.5mm (.098") pitch XAconnector for use specifically with resin coated ("potted") PC boardsFeatures ––––––––––––––––––––––––• Header for 2.5mm (.098") pitch XA connector for use specifically with resin coated ("potted") PC boardsThis header is tall and fully shrouded so as to prevent the resin used to coat the PC board from coming into contact with the mating pins.• InterchangeabilityDesigned to accept XA mating receptacles.Specifications –––––––––––––––––––• Current rating:3A AC, DC (AWG#22)• Voltage rating:250V AC, DC• Temperature range:-25˚C to +85˚C(including temperature rise in applying electrical current)• Contact resistance:Initial value/10m Ωmax.After environmental testing/20m Ωmax.• Insulation resistance:1,000M Ωmin.• Withstanding voltage:1,000V AC/minute • Applicable wire:AWG #28 to #22• Applicable PC board thickness: 1.6mm (.063")* Contact JST for details.Standards ––––––––––––––––––––––0Recognized E603891Certified LR208122R9851220Disconnectable Crimp style connectorsXA CONNECTORHigh box typeRadial TapeContact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––XA CONNECTORHigh box typeRetainer –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––<For reference>As the color identification,the following alphabet shall be put in the underlined part.For availability, delivery and minimum order quantity, contact JST.ex.XAP-02V-1-oo -(blank)…natural (white)K…black R…red E…blue M…green Y…yellowShrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––XA CONNECTORHigh box typeShrouded header on radial-tape –––––––––––––––––––––––––––––––––––––––––––––<For reference>As the color identification,the following alphabet shall be put in the underlined part.For availability, delivery and minimum order quantity, contact JST.ex.BH02B-XASK-BN -S…natural (ivory)K…black R…red M…green Y…yellowPackaging specifications –––––––––––––––––––––––––––––––––––––––––––––––––––Products of different packaging specifications sre also available.Contact JST for details.XA CONNECTORHigh box typePC board layout(viewed from component side)and Assembly layout ––––––––––––––––––Note:1. Tolerances are non-Cumulative: ±0.05mm( ±.002") for all centers.2. Hole dimensions differ according to the kind of PC board and piercing method.The dimensions above should serve as a guide line. Contact JST for details.Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––Applicator for the semi-automatic press AP-K2N–––––––––––––––––––––––––––––––。

XH CONNECTOR端子塑壳注1）有关材质为黄铜的产品或镀金规格产品，请垂询本公司。

2）使用屏蔽线、小尺寸电线以及其他特殊规格的电线时，请垂询本公司。

3） S XH-001T-P0.6N 型是为了提高插拔作业性而将接插力设计得较低的连接器。

请用于振动较少、使用环境良好的部位。

●符合RoHS 标准的产品注 1） 2极10.0mm 间距填孔部件。

未注册UL、CSA、T V 标准的产品。

2） 6极5.0mm 间距填孔部件。

未注册UL、CSA、T V 标准的产品。

2）有关全自动压着机用的压着模具，请垂询本公司。

XH CONNECTOR带座插头带座插头注1）还备有自接插部端面的电路板安装销尺寸为7.6mm的侧装型2～15极。

订货时请在上述型号的末尾加上“ -1”。

2） 2极10.0mm间距填孔部件。

（未注册UL、CSA、T V标准的产品。

）3） 可与NR/NRD连接器（压接方式）、JQ连接器（电路板对电路板）通用。

XH CONNECTOR表面封装型带座插头注1）带座插头为NR/NRD 连接器（压接方式）、JQ 连接器（电路板对电路板）通用。

2）※表示未注册UL、CSA、T V 标准的产品。

带座插头XH CONNECTOR径向带带座插头● 符合RoHS 标准的产品　本产品的标签上标有（LF）（SN）。

带装尺寸包装规格注）也备有包装规格不同的产品。

详情请垂询本公司。

XH CONNECTOR带座插头 引脚拔出填孔部件带座插头 玻璃纤维增强尼龙产品塑壳 引脚拔出填孔部件塑壳带座插头端子径向带 带座插头表面封装型 带座插头带座插头 带定位柱顶装型型号标示方法。

1、板对线连接器SF特点●端子呈箱型,接触点部分采用对面突出构造,实现了高度连接可信性● 便于电路板印刷的设计,7.5mm间距、同时实际安装状态的高度为16.2mm,厚度为10mm,实现了规格电流10A的要求。

●Housing锁扣采用牢固的Positive Lock、端子保持部分采用Housing Lance构造。

实现了稳定的连接传导性能●防止逆向咬合·逆向插入构造,采用可防止排线扯扭而造成的接触不良的箱型，Wafer PIN为压入式构造,可完全防止溶剂进入。

SF规格极数2·3·4P极间间距7.5mm定额电压AC.DC300V定额电流10A耐电压AC1500V/1分绝缘抵抗1000MΩ以上使用温度范围－25～＋105℃对应P.C.B板厚度 1.2～1.6mm对应P.C.B板孔径φ1.7mmSH特点●防止插入失误的构造●反复插入拆卸也保持其可靠性●小型化设计SH规格极数2～6P极间间距 5.0mm定额电压AC.DC250V定额电流5A耐电压AC1500V/1分绝缘抵抗1000MΩ以上使用温度范围－25～＋85℃对应P.C.B板厚度 1.6mm对应P.C.B板孔径φ1.7mmSRV特点●Housing锁扣采用Inner Lock、端子保持部分采用Housing Lance构造。

实现了稳定的连接传导性能。

●通过采用保持架(选配)、利用双重防脱构造进一步提高了安全性。

●因可以同线对线RV连接器共用Plug Housing,所以如果是在同一零件和同一电路上根据构造区分使用板对线和线对线连接器时,可以共用电线●配套了可封装的WaferSRV规格极数2～4·6·8·12·16P极间间距 4.2mm定额电压AC.DC300V定额电流10A耐电压AC1500V/1分绝缘抵抗1000MΩ以上使用温度范围－25～＋105℃对应P.C.B板厚度 1.2～1.6mm对应P.C.B板孔径φ1.7mmSV特点●因为是3.96mm间距,实现了实际安装嵌入状态下的高度为16.2mm、厚度10mm、规格电流10A ●端子呈箱型,接触点部分采用对面突出构造,实现了高度连接可信性●Housing锁扣采用牢固的Positive Lock、端子保持部分采用Housing Lance构造。

制 订Edit审 核Check批 准ApprovalPage 1 of 7NO.: PS0020顾客产品名称型号Client Product Name: 产品名称型号Product Name: 1.0连接器 产品编码Part Number: 规格书版本号Version Number: 0产品规格书PRODUCT SPECIFICATION编号Serial numberPS0020 版本号Version Number产品名称Product Name 1.0连接器产品规格书Product Specification产品编码Part Number1 适用范围Scope本产品规格书适用于乐清市杰渝电子有限公司生产的1.0电子连接器。
