毕业设计说明书
题目名称：螺旋输送机的设计院系名称：
班级：
学号：
学生姓名：
指导教师：
2011年 05月

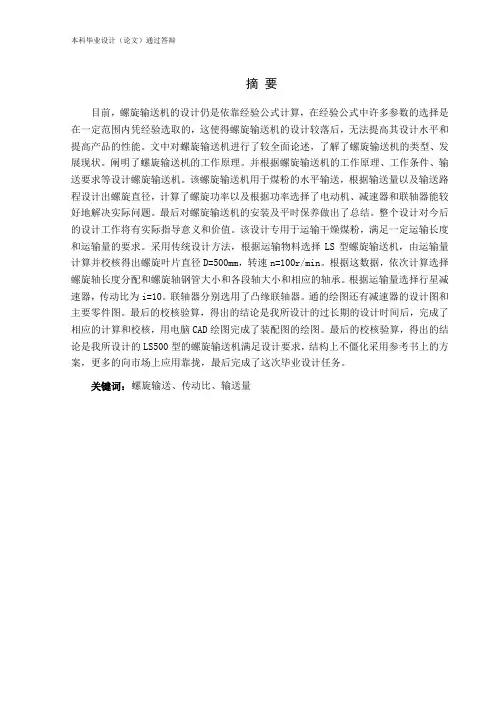

摘要
目前，螺旋输送机的设计仍是依靠经验公式计算，在经验公式中许多参数的选择是在一定范围内凭经验选取的，这使得螺旋输送机的设计较落后，无法提高其设计水平和提高产品的性能。文中对螺旋输送机进行了较全面论述，了解了螺旋输送机的类型、发展现状。阐明了螺旋输送机的工作原理。并根据螺旋输送机的工作原理、工作条件、输送要求等设计螺旋输送机。该螺旋输送机用于煤粉的水平输送，根据输送量以及输送路程设计出螺旋直径，计算了螺旋功率以及根据功率选择了电动机、减速器和联轴器能较好地解决实际问题。最后对螺旋输送机的安装及平时保养做出了总结。整个设计对今后的设计工作将有实际指导意义和价值。该设计专用于运输干燥煤粉，满足一定运输长度和运输量的要求。采用传统设计方法，根据运输物料选择LS型螺旋输送机，由运输量计算并校核得出螺旋叶片直径D=500mm，转速n=100r/min。根据这数据，依次计算选择螺旋轴长度分配和螺旋轴钢管大小和各段轴大小和相应的轴承。根据运输量选择行星减速器，传动比为i=10。联轴器分别选用了凸缘联轴器。通的绘图还有减速器的设计图和主要零件图。最后的校核验算，得出的结论是我所设计的过长期的设计时间后，完成了相应的计算和校核，用电脑CAD绘图完成了装配图的绘图。最后的校核验算，得出的结论是我所设计的LS500型的螺旋输送机满足设计要求，结构上不僵化采用参考书上的方案，更多的向市场上应用靠拢，最后完成了这次毕业设计任务。
关键词：螺旋输送、传动比、输送量
Abstract
Currently, the design of screw conveyor is still relying on the experience formula, the formula in the experience of many of the parameters of the option is selected within a certain range rule of thumb, which makes the design of screw conveyor has fallen behind, unable to raise design standards and improve product performance. In this paper, for a more comprehensive treatment of screw conveyor, screw conveyor of the type of understanding, development status. Illustrates the working principle of screw conveyor. Screw conveyor according to the working principle, working conditions, transportation requirements to design a screw conveyor. The level of the screw conveyor for coal transportation, according to throughput and transmission distance design spiral diameter, spiral computed power and power is selected based on motor, reducer and couplings can solve practical problems. Finally, screw conveyor installation and maintenance of peace and make a summary. The design of future design work will have practical significance and value. The design is dedicated to transport dry and coal, to meet a certain length and traffic transportation requirements. Traditional design method, according to the LS-type screw conveyor material selection, calculation and check of the transport screw blade diameter obtained D = 500mm, speed n = 100r/min. According to this data, followed by calculation of the length distribution and select the screw shaft screw shaft steel shaft size and the size of each segment and the corresponding bearings. Selected according to traffic planetary gear, transmission ratio i = 10. Were selected coupling flange coupling. There reducer through the design drawings and the main part drawing. Checking the final check, I have concluded that the design of the design over a long time after the completion of the corresponding calculation and verification, CAD drawing with a computer to complete the assembly map drawing. Checking the final check, I concluded that the LS500 is designed to meet the design requirements shaped screw conveyor, the structure is not rigid plan on using reference books, and more applications move closer to the market, and finally completed the Graduation task.
Keywords: screw conveyor, transmission ratio, throughput
